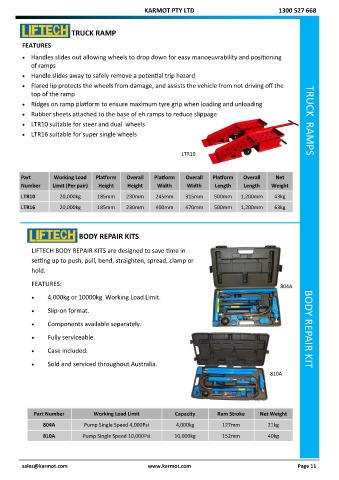

Page 17 - 2020 Catalogue - Email_Neat

KARMOT PTY LTD 1300 527 668

TRUCK RAMP

FEATURES

 Handles slides out allowing wheels to drop down for easy manoeuvrability and positioning
of ramps
 Handle slides away to safely remove a potential trip hazard
 Flared lip protects the wheels from damage, and assists the vehicle from not driving off the
top of the ramp
 Ridges on ramp platform to ensure maximum tyre grip when loading and unloading
 Rubber sheets attached to the base of eh ramps to reduce slippage

 LTR10 suitable for steer and dual wheels TRUCK RAMPS
 LTR16 suitable for super single wheels

LTR10

Part Working Load Platform Overall Platform Overall Platform Overall Net
Number Limit (Per pair) Height Height Width Width Length Length Weight
LTR10 20,000kg 185mm 230mm 245mm 315mm 500mm 1,200mm 43kg

LTR16 20,000kg 185mm 230mm 400mm 470mm 500mm 1,200mm 63kg

BODY REPAIR KITS

LIFTECH BODY REPAIR KITS are designed to save time in
setting up to push, pull, bend, straighten, spread, clamp or

hold.

FEATURES: 804A
 4,000kg or 10000kg Working Load Limit.

 Slip-on format.

 Components available separately.

 Fully serviceable. BODY REPAIR KIT

 Case included.

 Sold and serviced throughout Australia.
810A

Part Number Working Load Limit Capacity Ram Stroke Net Weight

804A Pump Single Speed 4,000Psi 4,000kg 127mm 21kg
810A Pump Single Speed 10,000Psi 10,000kg 152mm 40kg

sales@karmot.com www.karmot.com Page 11
