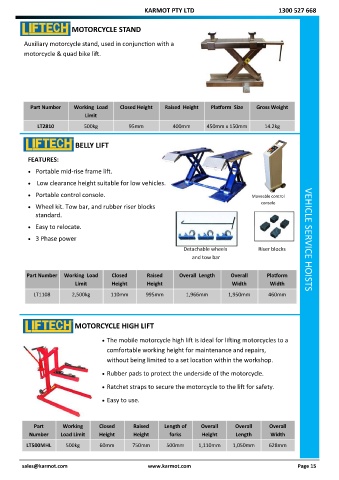

Page 21 - 2020 Catalogue - Email_Neat

KARMOT PTY LTD 1300 527 668

MOTORCYCLE STAND

Auxiliary motorcycle stand, used in conjunction with a
motorcycle & quad bike lift.

Part Number Working Load Closed Height Raised Height Platform Size Gross Weight
Limit
LT2810 500kg 95mm 400mm 450mm x 150mm 14.2kg

BELLY LIFT

FEATURES:

 Portable mid-rise frame lift.

 Low clearance height suitable for low vehicles.
 Portable control console. Moveable control
console
 Wheel kit. Tow bar, and rubber riser blocks
standard.
 Easy to relocate.

 3 Phase power VEHICLE SERVICE HOISTS
Detachable wheels Riser blocks
and tow bar

Part Number Working Load Closed Raised Overall Length Overall Platform
Limit Height Height Width Width
LT1108 2,500kg 110mm 995mm 1,966mm 1,950mm 460mm

MOTORCYCLE HIGH LIFT

 The mobile motorcycle high lift is ideal for lifting motorcycles to a
comfortable working height for maintenance and repairs,
without being limited to a set location within the workshop.

 Rubber pads to protect the underside of the motorcycle.

 Ratchet straps to secure the motorcycle to the lift for safety.

 Easy to use.

Part Working Closed Raised Length of Overall Overall Overall
Number Load Limit Height Height forks Height Length Width
LT500MHL 500kg 60mm 750mm 500mm 1,110mm 1,050mm 628mm

sales@karmot.com www.karmot.com Page 15
