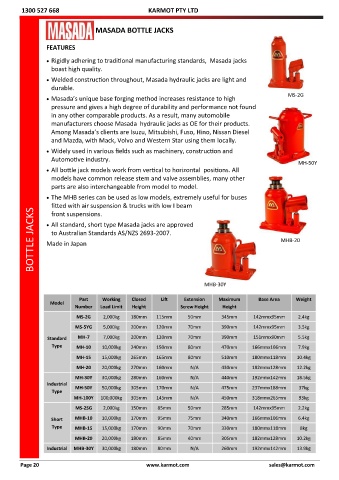

Page 26 - 2020 Catalogue - Email_Neat

1300 527 668 KARMOT PTY LTD

MASADA BOTTLE JACKS

FEATURES

 Rigidly adhering to traditional manufacturing standards, Masada jacks
boast high quality.

 Welded construction throughout, Masada hydraulic jacks are light and
durable.
MS-2G
 Masada’s unique base forging method increases resistance to high
pressure and gives a high degree of durability and performance not found
in any other comparable products. As a result, many automobile
manufacturers choose Masada hydraulic jacks as OE for their products.
Among Masada’s clients are Isuzu, Mitsubishi, Fuso, Hino, Nissan Diesel
and Mazda, with Mack, Volvo and Western Star using them locally.
 Widely used in various fields such as machinery, construction and
Automotive industry.
MH-50Y
 All bottle jack models work from vertical to horizontal positions. All
models have common release stem and valve assemblies, many other
parts are also interchangeable from model to model.

 The MHB series can be used as low models, extremely useful for buses
fitted with air suspension & trucks with low I beam
BOTTLE JACKS  All standard, short type Masada jacks are approved MHB-20
front suspensions.

to Australian Standards AS/NZS 2693-2007.

Made in Japan

MHB-30Y

Part Working Closed Lift Extension Maximum Base Area Weight
Model
Number Load Limit Height Screw Height Height
MS-2G 2,000kg 180mm 115mm 50mm 345mm 142mmx95mm 2.4kg
MS-5YG 5,000kg 200mm 120mm 70mm 390mm 142mmx95mm 3.5kg

Standard MH-7 7,000kg 200mm 120mm 70mm 390mm 151mmx90mm 5.5kg
Type MH-10 10,000kg 240mm 150mm 80mm 470mm 166mmx106mm 7.9kg

MH-15 15,000kg 265mm 165mm 80mm 510mm 180mmx118mm 10.4kg
MH-20 20,000kg 270mm 160mm N/A 430mm 182mmx128mm 12.2kg
MH-30Y 30,000kg 280mm 160mm N/A 440mm 192mmx142mm 18.5kg
Industrial
MH-50Y 50,000kg 305mm 170mm N/A 475mm 237mmx188mm 37kg
Type
MH-100Y 100,000kg 305mm 145mm N/A 450mm 318mmx265mm 93kg
MS-2SG 2,000kg 150mm 85mm 50mm 285mm 142mmx95mm 2.2kg

Short MHB-10 10,000kg 170mm 95mm 75mm 340mm 166mmx106mm 6.4kg
Type MHB-15 15,000kg 170mm 90mm 70mm 330mm 180mmx118mm 8kg

MHB-20 20,000kg 180mm 85mm 40mm 305mm 182mmx128mm 10.2kg
Industrial MHB-30Y 30,000kg 180mm 80mm N/A 260mm 192mmx142mm 13.9kg
