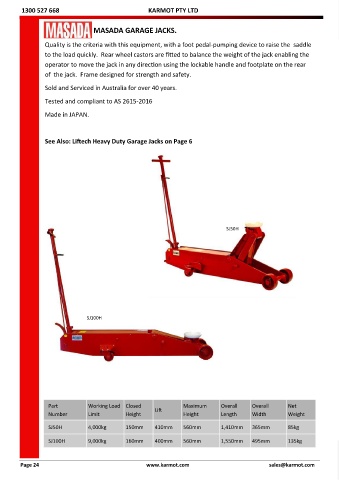

MASADA GARAGE JACKS.

Quality is the criteria with this equipment, with a foot pedal-pumping device to raise the saddle
to the load quickly. Rear wheel castors are fitted to balance the weight of the jack enabling the

operator to move the jack in any direction using the lockable handle and footplate on the rear
of the jack. Frame designed for strength and safety.

Sold and Serviced in Australia for over 40 years.

Tested and compliant to AS 2615-2016
Made in JAPAN.

See Also: Liftech Heavy Duty Garage Jacks on Page 6

SJ50H

SJ100H

Part Working Load Closed Maximum Overall Overall Net
Lift
Number Limit Height Height Length Width Weight

SJ50H 4,000kg 150mm 410mm 560mm 1,410mm 365mm 85kg

SJ100H 9,000kg 160mm 400mm 560mm 1,550mm 495mm 135kg
