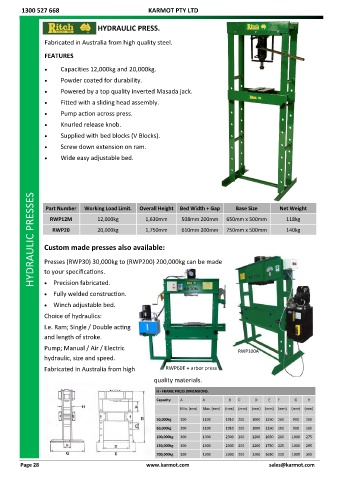

HYDRAULIC PRESS.

Fabricated in Australia from high quality steel.

FEATURES
 Capacities 12,000kg and 20,000kg.

 Powder coated for durability.
 Powered by a top quality inverted Masada jack.

 Fitted with a sliding head assembly.
 Pump action across press.
 Knurled release knob.

 Supplied with bed blocks (V Blocks).
 Screw down extension on ram.

 Wide easy adjustable bed.

HYDRAULIC PRESSES Custom made presses also available: 508mm 200mm 650mm x 500mm Net Weight

Base Size
Part Number Working Load Limit. Overall Height Bed Width + Gap
12,000kg
RWP12M
118kg
1,630mm
610mm 200mm 750mm x 500mm
140kg
1,750mm
RWP20
20,000kg
Presses (RWP30) 30,000kg to (RWP200) 200,000kg can be made
to your specifications.
 Precision fabricated.

 Fully welded construction.
 Winch adjustable bed.

Choice of hydraulics:
I.e. Ram; Single / Double acting
and length of stroke.

Pump; Manual / Air / Electric
RWP100A
hydraulic, size and speed.
Fabricated in Australia from high RWP60E + arbor press

quality materials.
H - FRAME PRESS DIMENSIONS.
Capacity A A B C D E F G H
Min. (mm) Max. (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)

50,000kg 300 1100 1910 200 1000 1350 200 900 260
60,000kg 300 1100 1910 200 1000 1350 200 900 260
100,000kg 300 1300 2300 200 1200 1650 200 1000 275
150,000kg 300 1300 2300 200 1200 1750 225 1000 295
200,000kg 300 1300 2300 200 1200 1650 225 1000 365
