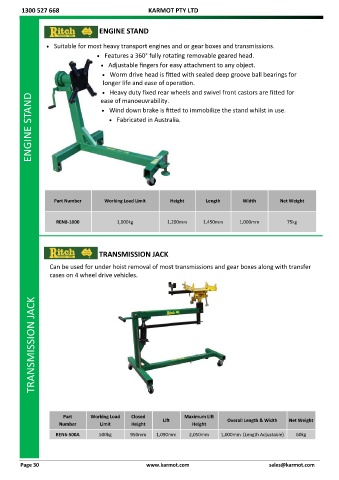

Page 36 - 2020 Catalogue - Email_Neat

1300 527 668 KARMOT PTY LTD

ENGINE STAND

 Suitable for most heavy transport engines and or gear boxes and transmissions.
 Features a 360° fully rotating removable geared head.
 Adjustable fingers for easy attachment to any object.
 Worm drive head is fitted with sealed deep groove ball bearings for
longer life and ease of operation.
 Heavy duty fixed rear wheels and swivel front castors are fitted for
ENGINE STAND  Wind down brake is fitted to immobilize the stand whilst in use.
ease of manoeuvrability.

 Fabricated in Australia.

Part Number Working Load Limit Height Length Width Net Weight

REN8-1000 1,000kg 1,200mm 1,450mm 1,000mm 75kg

TRANSMISSION JACK

Can be used for under hoist removal of most transmissions and gear boxes along with transfer
cases on 4 wheel drive vehicles.

TRANSMISSION JACK

Part Working Load Closed Maximum Lift
Lift Overall Length & Width Net Weight
Number Limit Height Height
REN6-500A 500kg 950mm 1,090mm 2,050mm 1,000mm (Length Adjustable) 60kg

Page 30 www.karmot.com sales@karmot.com
