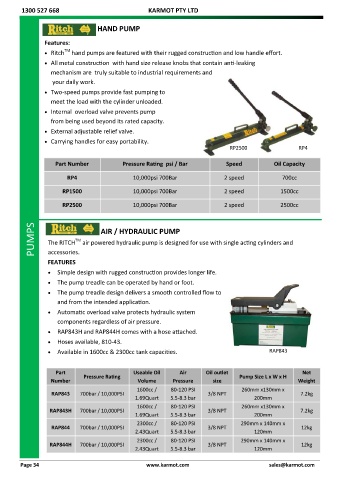

1300 527 668 KARMOT PTY LTD

HAND PUMP

Features:
TM
 Ritch hand pumps are featured with their rugged construction and low handle effort.
 All metal construction with hand size release knobs that contain anti-leaking
mechanism are truly suitable to industrial requirements and
your daily work.

 Two-speed pumps provide fast pumping to
meet the load with the cylinder unloaded.
 Internal overload valve prevents pump
from being used beyond its rated capacity.
 External adjustable relief valve.
 Carrying handles for easy portability.
RP2500 RP4

Part Number Pressure Rating psi / Bar Speed Oil Capacity

RP4 10,000psi 700Bar 2 speed 700cc

RP1500 10,000psi 700Bar 2 speed 1500cc

RP2500 10,000psi 700Bar 2 speed 2500cc

PUMPS The RITCH air powered hydraulic pump is designed for use with single acting cylinders and
AIR / HYDRAULIC PUMP
TM

accessories.
FEATURES
 Simple design with rugged construction provides longer life.
 The pump treadle can be operated by hand or foot.

 The pump treadle design delivers a smooth controlled flow to
and from the intended application.
 Automatic overload valve protects hydraulic system
components regardless of air pressure.
 RAP843H and RAP844H comes with a hose attached.
 Hoses available, 810-43.
 Available in 1600cc & 2300cc tank capacities. RAP843

Part Useable Oil Air Oil outlet Net
Pressure Rating Pump Size L x W x H
Number Volume Pressure size Weight
1600cc / 80-120 PSI 260mm x130mm x
RAP843 700bar / 10,000PSI 3/8 NPT 7.2kg
1.69Quart 5.5-8.3 bar 200mm
1600cc / 80-120 PSI 260mm x130mm x
RAP843H 700bar / 10,000PSI 3/8 NPT 7.2kg
1.69Quart 5.5-8.3 bar 200mm
2300cc / 80-120 PSI 290mm x 140mm x
RAP844 700bar / 10,000PSI 3/8 NPT 12kg
2.43Quart 5.5-8.3 bar 120mm
2300cc / 80-120 PSI 290mm x 140mm x
RAP844H 700bar / 10,000PSI 3/8 NPT 12kg
2.43Quart 5.5-8.3 bar 120mm

Page 34 www.karmot.com sales@karmot.com
