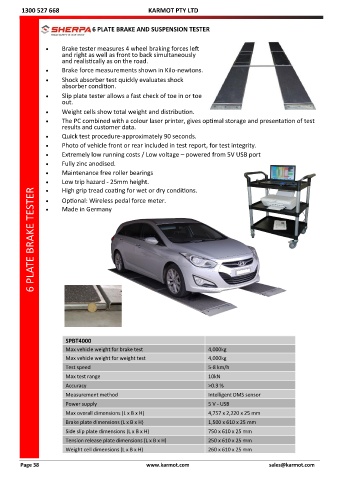

6 PLATE BRAKE AND SUSPENSION TESTER

 Brake tester measures 4 wheel braking forces left
and right as well as front to back simultaneously
and realistically as on the road.
 Brake force measurements shown in Kilo-newtons.
 Shock absorber test quickly evaluates shock
absorber condition.
 Slip plate tester allows a fast check of toe in or toe
out.
 Weight cells show total weight and distribution.
 The PC combined with a colour laser printer, gives optimal storage and presentation of test
results and customer data.
 Quick test procedure-approximately 90 seconds.
 Photo of vehicle front or rear included in test report, for test integrity.
 Extremely low running costs / Low voltage – powered from 5V USB port
 Fully zinc anodised.
 Maintenance free roller bearings
 Low trip hazard - 25mm height.
6 PLATE BRAKE TESTER
 High grip tread coating for wet or dry conditions.
 Optional: Wireless pedal force meter.
 Made in Germany

SPBT4000
Max vehicle weight for brake test 4,000kg
Max vehicle weight for weight test 4,000kg
Test speed 5-8 km/h
Max test range 10kN
Accuracy >0.3 %
Measurement method Intelligent DMS sensor
Power supply 5 V - USB
Max overall dimensions (L x B x H) 4,757 x 2,220 x 25 mm
Brake plate dimensions (L x B x H) 1,500 x 610 x 25 mm
Side slip plate dimensions (L x B x H) 750 x 610 x 25 mm
Tension release plate dimensions (L x B x H) 250 x 610 x 25 mm
Weight cell dimensions (L x B x H) 260 x 610 x 25 mm
