1300 527 668                                KARMOT PTY LTD

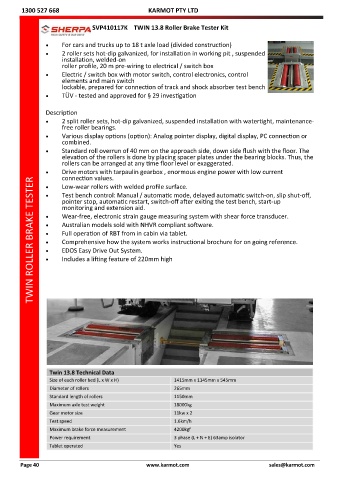

                                 SVP410117K    TWIN 13.8 Roller Brake Tester Kit

                      For cars and trucks up to 18 t axle load (divided construction)
                      2 roller sets hot-dip galvanized, for installation in working pit , suspended
                       installation, welded-on
                       roller profile, 20 m pre-wiring to electrical / switch box
                      Electric / switch box with motor switch, control electronics, control
                       elements and main switch
                       lockable, prepared for connection of track and shock absorber test bench
                      TÜV - tested and approved for § 29 investigation

                 Description
                      2 split roller sets, hot-dip galvanized, suspended installation with watertight, maintenance-
                       free roller bearings.
                      Various display options (option): Analog pointer display, digital display, PC connection or
                       combined.
                      Standard roll overrun of 40 mm on the approach side, down side flush with the floor. The
                       elevation of the rollers is done by placing spacer plates under the bearing blocks. Thus, the
                       rollers can be arranged at any time floor level or exaggerated.
                      Drive motors with tarpaulin gearbox , enormous engine power with low current
             TWIN ROLLER BRAKE TESTER
                       connection values.
                      Low-wear rollers with welded profile surface.
                      Test bench control: Manual / automatic mode, delayed automatic switch-on, slip shut-off,
                       pointer stop, automatic restart, switch-off after exiting the test bench, start-up
                       monitoring and extension aid.
                      Wear-free, electronic strain gauge measuring system with shear force transducer.
                      Australian models sold with NHVR compliant software.
                      Full operation of RBT from in cabin via tablet.
                      Comprehensive how the system works instructional brochure for on going reference.
                      EDOS Easy Drive Out System.
                      Includes a lifting feature of 220mm high























                  Twin 13.8 Technical Data
                  Size of each roller bed (L x W x H)         1415mm x 1145mm x 545mm
                  Diameter of rollers                         265mm
                  Standard length of rollers                  1150mm
                  Maximum axle test weight                    18000kg
                  Gear motor size                             11kw x 2
                  Test speed                                  1.6km/h
                  Maximum brake force measurement             4200kgf
                  Power requirement                           3 phase (L + N + E) 63amp isolator
                  Tablet operated                             Yes
