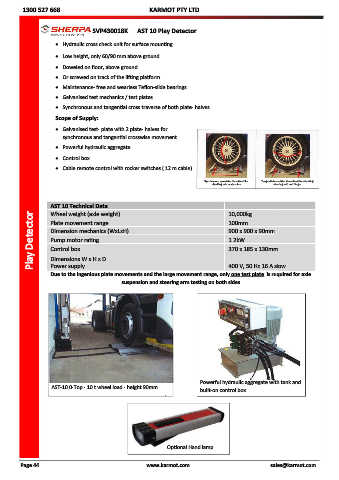

SVP430018K AST 10 Play Detector

 Hydraulic cross check unit for surface mounting.

 Low height, only 60/90 mm above ground.
 Doweled on floor, above ground.
 Or screwed on track of the lifting platform.

 Maintenance- free and wearless Teflon-slide bearings.
 Galvanised test mechanics / test plates.
 Synchronous and tangential cross traverse of both plate- halves.
Scope of Supply:

 Galvanised test- plate with 2 plate- halves for
synchronous and tangential crosswise movement.
 Powerful hydraulic aggregate.
 Control box.
 Cable remote control with rocker switches ( 12 m cable)

Synchronous crosswise movement for Tangential crosswise movement for checking
checking axle suspension steering arm and hinges

AST 10 Technical Data 10,000kg
Play Detector Dimension mechanics (WxLxH) 900 x 900 x 90mm
Wheel weight (axle weight)
100mm
Plate movement range

Pump motor rating
1.2kW
Control box
370 x 185 x 130mm
Dimensions W x H x D
400 V, 50 Hz 16 A slow
Power supply
Due to the ingenious plate movements and the large movement range, only one test plate is required for axle
suspension and steering arm testing on both sides

Powerful hydraulic aggregate with tank and
AST-10.0-Top - 10 t wheel load - height 90mm
built-on control box

Optional Hand lamp
