KARMOT PTY LTD 1300 527 668

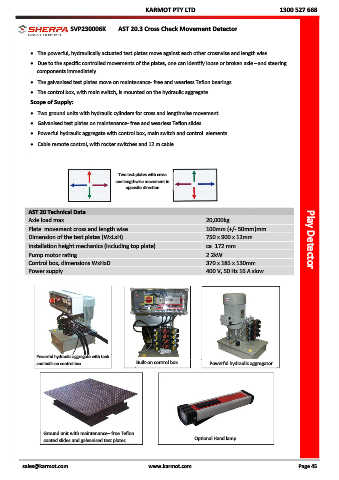

SVP230006K AST 20.3 Cross Check Movement Detector

 The powerful, hydraulically actuated test plates move against each other crosswise and length wise.
 Due to the specific controlled movements of the plates, one can identify loose or broken axle – and steering
components immediately.
 The galvanised test plates move on maintenance- free and wearless Teflon bearings.

 The control box, with main switch, is mounted on the hydraulic aggregate.
Scope of Supply:
 Two ground units with hydraulic cylinders for cross and lengthwise movement.
 Galvanised test plates on maintenance- free and wearless Teflon slides.

 Powerful hydraulic aggregate with control box, main switch and control elements.
 Cable remote control, with rocker switches and 12 m cable.

Two test plates with cross
and lengthwise movement in
opposite direction

AST 20 Technical Data
Axle load max. 20,000kg
Plate movement cross and length wise 100mm (+/- 50mm)mm
Dimension of the test plates (WxLxH) 750 x 900 x 12mm
Installation height mechanics (including top plate) ca. 172 mm Play Detector
Pump motor rating 2.2kW
Control box, dimensions WxHxD 370 x 185 x 130mm
Power supply 400 V, 50 Hz 16 A slow

Powerful hydraulic aggregate with tank
and built-on control box Built-on control box. Powerful hydraulic aggregator

Ground unit with maintenance– free Teflon
Optional Hand lamp
coated slides and galvanised test plates

sales@karmot.com www.karmot.com Page 45
