P. 47

KARMOT PTY LTD                                 1300 527 668

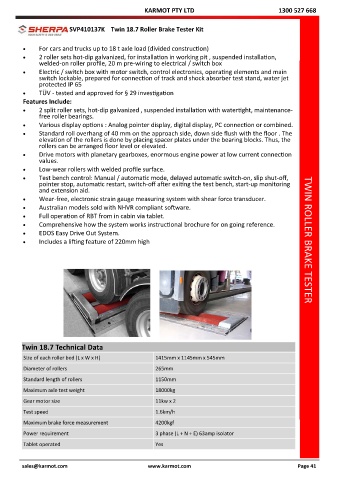

                         SVP410137K    Twin 18.7 Roller Brake Tester Kit

              For cars and trucks up to 18 t axle load (divided construction)
              2 roller sets hot-dip galvanized, for installation in working pit , suspended installation,
               welded-on roller profile, 20 m pre-wiring to electrical / switch box
              Electric / switch box with motor switch, control electronics, operating elements and main
               switch lockable, prepared for connection of track and shock absorber test stand, water jet
               protected IP 65
              TÜV - tested and approved for § 29 investigation
         Features Include:
              2 split roller sets, hot-dip galvanized , suspended installation with watertight, maintenance-
               free roller bearings.
              Various display options : Analog pointer display, digital display, PC connection or combined.
              Standard roll overhang of 40 mm on the approach side, down side flush with the floor . The
               elevation of the rollers is done by placing spacer plates under the bearing blocks. Thus, the
               rollers can be arranged floor level or elevated.
              Drive motors with planetary gearboxes, enormous engine power at low current connection
               values.
              Low-wear rollers with welded profile surface.
              Test bench control: Manual / automatic mode, delayed automatic switch-on, slip shut-off,
               pointer stop, automatic restart, switch-off after exiting the test bench, start-up monitoring
               and extension aid.
              Wear-free, electronic strain gauge measuring system with shear force transducer.
              Australian models sold with NHVR compliant software.
              Full operation of RBT from in cabin via tablet.
              Comprehensive how the system works instructional brochure for on going reference.
              EDOS Easy Drive Out System.
              Includes a lifting feature of 220mm high                                                     TWIN ROLLER BRAKE TESTER





















         Twin 18.7 Technical Data

         Size of each roller bed (L x W x H)            1415mm x 1145mm x 545mm
         Diameter of rollers                            265mm

         Standard length of rollers                     1150mm
         Maximum axle test weight                       18000kg
         Gear motor size                                11kw x 2

         Test speed                                     1.6km/h
         Maximum brake force measurement                4200kgf
         Power requirement                              3 phase (L + N + E) 63amp isolator

         Tablet operated                                Yes



           sales@karmot.com                          www.karmot.com                                       Page 41
