KARMOT PTY LTD 1300 527 668

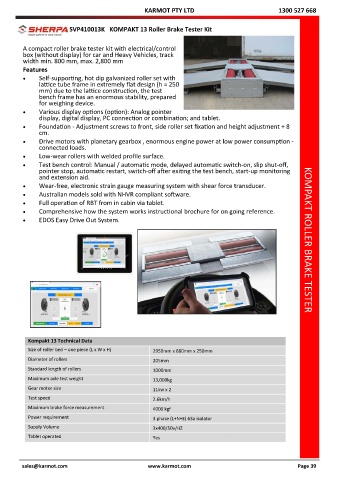

SVP410013K KOMPAKT 13 Roller Brake Tester Kit

A compact roller brake tester kit with electrical/control
box (without display) for car and Heavy Vehicles, track
width min. 800 mm, max. 2,800 mm
Features
 Self-supporting, hot dip galvanized roller set with
lattice tube frame in extremely flat design (h = 250
mm) due to the lattice construction, the test
bench frame has an enormous stability, prepared
for weighing device.
 Various display options (option): Analog pointer
display, digital display, PC connection or combination; and tablet.
 Foundation - Adjustment screws to front, side roller set fixation and height adjustment + 8
cm.
 Drive motors with planetary gearbox , enormous engine power at low power consumption -
connected loads.
 Low-wear rollers with welded profile surface.
 Test bench control: Manual / automatic mode, delayed automatic switch-on, slip shut-off,
pointer stop, automatic restart, switch-off after exiting the test bench, start-up monitoring
and extension aid.
 Wear-free, electronic strain gauge measuring system with shear force transducer.
 Australian models sold with NHVR compliant software.
 Full operation of RBT from in cabin via tablet.
 Comprehensive how the system works instructional brochure for on going reference.
 EDOS Easy Drive Out System. KOMPAKT ROLLER BRAKE TESTER

Kompakt 13 Technical Data
Size of roller bed – one piece (L x W x H) 2950mm x 680mm x 250mm
Diameter of rollers 205mm
Standard length of rollers 1000mm
Maximum axle test weight 13,000kg

Gear motor size 11kw x 2
Test speed 2.6km/h
Maximum brake force measurement 4000 kgf
Power requirement 3 phase (L+N+E) 63a isolator
Supply Volume 3x400/50v/HZ
Tablet operated Yes
