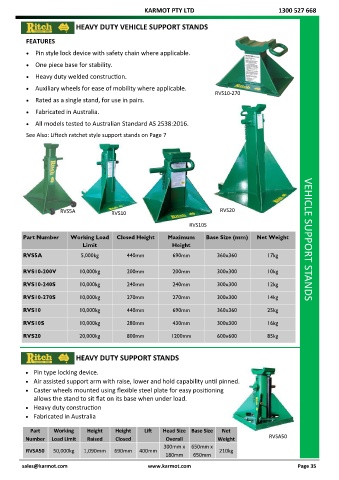

Page 41 - 2020 Catalogue - Email_Neat

KARMOT PTY LTD 1300 527 668

HEAVY DUTY VEHICLE SUPPORT STANDS

FEATURES

 Pin style lock device with safety chain where applicable.

 One piece base for stability.
 Heavy duty welded construction.

 Auxiliary wheels for ease of mobility where applicable.
RVS10-270
 Rated as a single stand, for use in pairs.

 Fabricated in Australia.

 All models tested to Australian Standard AS 2538:2016.
See Also: Liftech ratchet style support stands on Page 7

RVS5A RVS20 RVS20
RVS10
RVS10S
Part Number Working Load Closed Height Maximum Base Size (mm) Net Weight
Limit Height VEHICLE SUPPORT STANDS
RVS5A 5,000kg 440mm 690mm 360x360 17kg

RVS10-200V 10,000kg 200mm 200mm 300x300 10kg

RVS10-240S 10,000kg 240mm 240mm 300x300 12kg
RVS10-270S 10,000kg 270mm 270mm 300x300 14kg

RVS10 10,000kg 440mm 690mm 360x360 25kg

RVS10S 10,000kg 280mm 430mm 300x300 16kg

RVS20 20,000kg 800mm 1200mm 600x600 85kg

HEAVY DUTY SUPPORT STANDS

 Pin type locking device.
 Air assisted support arm with raise, lower and hold capability until pinned.
 Caster wheels mounted using flexible steel plate for easy positioning
allows the stand to sit flat on its base when under load.
 Heavy duty construction
 Fabricated in Australia

Part Working Height Height Lift Head Size Base Size Net
RVSA50
Number Load Limit Raised Closed Overall Weight
300mm x 650mm x
RVSA50 50,000kg 1,090mm 690mm 400mm 210kg
180mm 650mm
