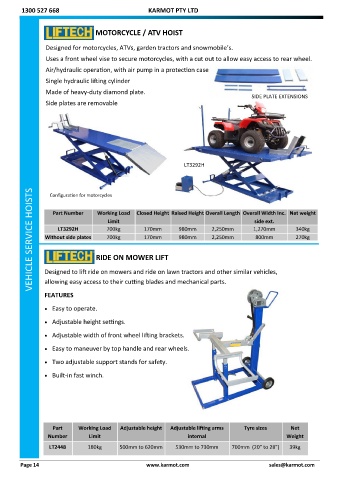

MOTORCYCLE / ATV HOIST

Designed for motorcycles, ATVs, garden tractors and snowmobile’s.
Uses a front wheel vise to secure motorcycles, with a cut out to allow easy access to rear wheel.

Air/hydraulic operation, with air pump in a protection case
Single hydraulic lifting cylinder

Made of heavy-duty diamond plate.
SIDE PLATE EXTENSIONS
Side plates are removable

LT3292H

VEHICLE SERVICE HOISTS
Configuration for motorcycles

Part Number Working Load Closed Height Raised Height Overall Length Overall Width Inc. Net weight
Limit side ext.
LT3292H 700kg 170mm 980mm 2,250mm 1,270mm 340kg
Without side plates 700kg 170mm 980mm 2,250mm 800mm 270kg

RIDE ON MOWER LIFT

Designed to lift ride on mowers and ride on lawn tractors and other similar vehicles,
allowing easy access to their cutting blades and mechanical parts.

FEATURES

 Easy to operate.

 Adjustable height settings.

 Adjustable width of front wheel lifting brackets.

 Easy to maneuver by top handle and rear wheels.

 Two adjustable support stands for safety.

 Built-in fast winch.

Part Working Load Adjustable height Adjustable lifting arms Tyre sizes Net
Number Limit internal Weight

LT2448 180kg 500mm to 620mm 530mm to 730mm 700mm (20” to 28”) 39kg
