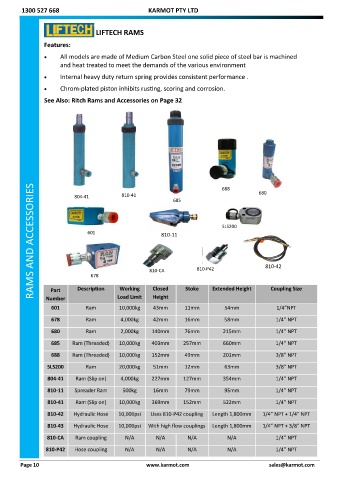

LIFTECH RAMS

Features:

 All models are made of Medium Carbon Steel one solid piece of steel bar is machined
and heat treated to meet the demands of the various environment
 Internal heavy duty return spring provides consistent performance .

 Chrom-plated piston inhibits rusting, scoring and corrosion.
See Also: Ritch Rams and Accessories on Page 32

RAMS AND ACCESSORIES
688
804-41 810-41 680
685

SLS200
601 810-11

810-42
810-CA 810-P42
678

Part Description Working Closed Stoke Extended Height Coupling Size
Number Load Limit Height
601 Ram 10,000kg 43mm 11mm 54mm 1/4”NPT

678 Ram 4,000kg 42mm 16mm 58mm 1/4” NPT
680 Ram 2,000kg 140mm 76mm 215mm 1/4” NPT

685 Ram (Threaded) 10,000kg 403mm 257mm 660mm 1/4” NPT
688 Ram (Threaded) 10,000kg 152mm 49mm 201mm 3/8” NPT

SLS200 Ram 20,000kg 51mm 12mm 63mm 3/8” NPT
804-41 Ram (Slip on) 4,000kg 227mm 127mm 354mm 1/4” NPT

810-11 Spreader Ram 500kg 16mm 79mm 95mm 1/4” NPT

810-41 Ram (Slip on) 10,000kg 369mm 152mm 522mm 1/4” NPT
810-42 Hydraulic Hose 10,000psi Uses 810-P42 coupling Length 1,800mm 1/4” NPT + 1/4” NPT

810-43 Hydraulic Hose 10,000psi With high flow couplings Length 1,800mm 1/4” NPT + 3/8” NPT
810-CA Ram coupling N/A N/A N/A N/A 1/4” NPT

810-P42 Hose coupling N/A N/A N/A N/A 1/4” NPT
