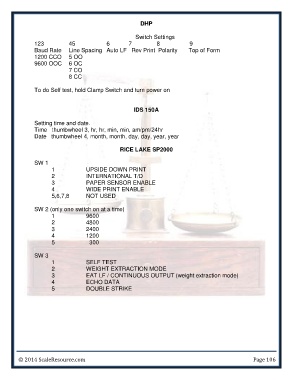

P. 106
DHP
Switch Settings
123 45 67 8 9
Baud Rate Top of Form
1200 CCO Line Spacing Auto LF Rev Print Polarity
9600 OOC
5 OO
6 OC
7 CO
8 CC
To do Self test, hold Clamp Switch and turn power on
IDS 150A
Setting time and date.
Time thumbwheel 3, hr, hr, min, min, am/pm/24hr
Date thumbwheel 4, month, month, day, day, year, year
RICE LAKE SP2000
SW 1 UPSIDE DOWN PRINT
1 INTERNATIONAL T/D
2 PAPER SENSOR ENABLE
3 WIDE PRINT ENABLE
4 NOT USED
5,6,7,8
SW 2 (only one switch on at a time)
1 9600
2 4800
3 2400
4 1200
5 300
SW 3 SELF TEST
1 WEIGHT EXTRACTION MODE
2 EAT LF / CONTINUOUS OUTPUT (weight extraction mode)
3 ECHO DATA
4 DOUBLE STRIKE
5
© 2014 ScaleResource.com Page 106
