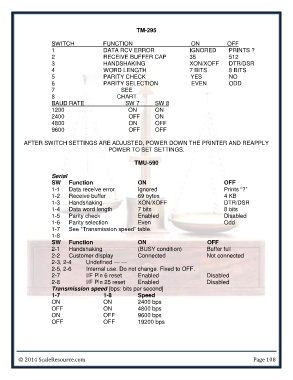

TM-295

SWITCH FUNCTION ON OFF
1 IGNORED PRINTS ?
2 DATA RCV ERROR 35 512
3 XON/XOFF DTR/DSR
4 RECEIVE BUFFER CAP 7 BITS 8 BITS
5 YES NO
6 HANDSHAKING EVEN ODD
7
8 WORD LENGTH
BAUD RATE
1200 PARITY CHECK
2400
4800 PARITY SELECTION
9600
SEE

CHART

SW 7 SW 8

ON ON

OFF ON

ON OFF

OFF OFF

AFTER SWITCH SETTINGS ARE ADJUSTED, POWER DOWN THE PRINTER AND REAPPLY
POWER TO SET SETTINGS.

TMU-590

Serial

SW Function ON OFF
Prints “?”
1-1 Data receive error Ignored 4 KB
DTR/DSR
1-2 Receive buffer 69 bytes 8 bits
Disabled
1-3 Handshaking XON/XOFF Odd

1-4 Data word length 7 bits OFF
Buffer full
1-5 Parity check Enabled Not connected

1-6 Parity selection Even Disabled
Disabled
1-7 See “Transmission speed” table.

1-8

SW Function ON

2-1 Handshaking (BUSY condition)

2-2 Customer display Connected

2-3, 2-4 Undefined — —

2-5, 2-6 Internal use. Do not change. Fixed to OFF.

2-7 I/F Pin 6 reset Enabled

2-8 I/F Pin 25 reset Enabled

Transmission speed [bps: bits per second]

1-7 1-8 Speed

ON ON 2400 bps

OFF ON 4800 bps

ON OFF 9600 bps

OFF OFF 19200 bps
