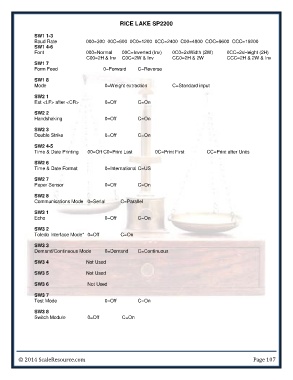

RICE LAKE SP2200

SW1 1-3 000=300 00C=600 0C0=1200 0CC=2400 C00=4800 COC=9600 CCC=19200
Baud Rate
SW1 4-6 000=Normal 00C=Inverted (Inv) 0C0=2xWidth (2W) 0CC=2xHeight (2H)
Font C00=2H & Inv C0C=2W & Inv CC0=2H & 2W CCC=2H & 2W & Inv

SW1 7 0=Forward C=Reverse
Form Feed

SW1 8 0=Weight extraction C=Standard input
Mode

SW2 1 0=Off C=On
Eat after

SW2 2 0=Off C=On
Handshaking

SW2 3 0=Off C=On
Double Strike
00=Off C0=Print Last 0C=Print First CC=Print after Units
SW2 4-5
Time & Date Printing 0=International C=US

SW2 6 0=Off C=On
Time & Date Format

SW2 7
Paper Sensor

SW2 8 C=Parallel
Communications Mode 0=Serial

SW3 1 0=Off C=On
Echo

SW3 2 C=On
Toledo Interface Mode* 0=Off

SW3 3 0=Demand C=Continuous
Demand/Continuous Mode

SW3 4 Not Used

SW3 5 Not Used

SW3 6 Not Used

SW3 7 0=Off C=On
Test Mode
0=Off C=On
SW3 8
Switch Module
