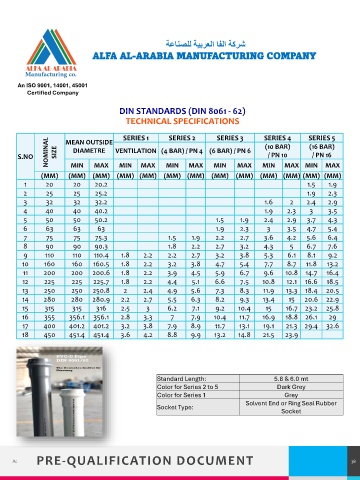

DIN STANDARDS (DIN 8061 - 62)
TECHNICAL SPECIFICATIONS

SERIES 2
SERIES 1
SERIES 3
NOMINAL SIZE MEAN OUTSIDE VENTILATION (4 BAR) / PN 4 (6 BAR) / PN 6 SERIES 4 SERIES 5
(16 BAR)
(10 BAR)
DIAMETRE
/ PN 10
/ PN 16
S.NO MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX
(MM) (MM) (MM) (MM) (MM) (MM) (MM) (MM) (MM) (MM) (MM) (MM) (MM)
1 20 20 20.2 1.5 1.9
2 25 25 25.2 1.9 2.3
3 32 32 32.2 1.6 2 2.4 2.9
4 40 40 40.2 1.9 2.3 3 3.5
5 50 50 50.2 1.5 1.9 2.4 2.9 3.7 4.3
6 63 63 63 1.9 2.3 3 3.5 4.7 5.4
7 75 75 75.3 1.5 1.9 2.2 2.7 3.6 4.2 5.6 6.4
8 90 90 90.3 1.8 2.2 2.7 3.2 4.3 5 6.7 7.6
9 110 110 110.4 1.8 2.2 2.2 2.7 3.2 3.8 5.3 6.1 8.1 9.2
10 160 160 160.5 1.8 2.2 3.2 3.8 4.7 5.4 7.7 8.7 11.8 13.2
11 200 200 200.6 1.8 2.2 3.9 4.5 5.9 6.7 9.6 10.8 14.7 16.4
12 225 225 225.7 1.8 2.2 4.4 5.1 6.6 7.5 10.8 12.1 16.6 18.5
13 250 250 250.8 2 2.4 4.9 5.6 7.3 8.3 11.9 13.3 18.4 20.5
14 280 280 280.9 2.2 2.7 5.5 6.3 8.2 9.3 13.4 15 20.6 22.9
15 315 315 316 2.5 3 6.2 7.1 9.2 10.4 15 16.7 23.2 25.8
16 355 356.1 356.1 2.8 3.3 7 7.9 10.4 11.7 16.9 18.8 26.1 29
17 400 401.2 401.2 3.2 3.8 7.9 8.9 11.7 13.1 19.1 21.3 29.4 32.6
18 450 451.4 451.4 3.6 4.2 8.8 9.9 13.2 14.8 21.5 23.9

Standard Length: 5.8 & 6.0 mt
Color for Series 2 to 5 Dark Grey
Color for Series 1 Grey
Solvent End or Ring Seal Rubber
Socket Type:
Socket

PRE-QUALIFICATION DOCUMENT
