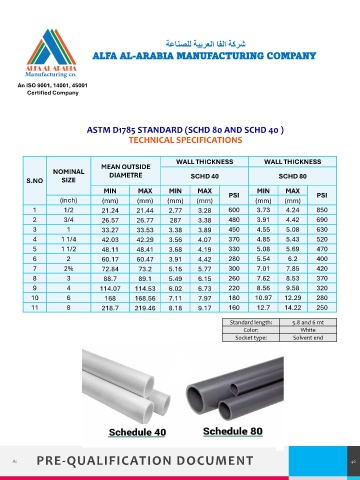

ASTM D1785 STANDARD (SCHD 80 AND SCHD 40 )
TECHNICAL SPECIFICATIONS

WALL THICKNESS WALL THICKNESS
MEAN OUTSIDE
NOMINAL DIAMETRE
S.NO SIZE SCHD 40 SCHD 80
MIN MAX MIN MAX PSI MIN MAX PSI
(inch) (mm) (mm) (mm) (mm) (mm) (mm)
1 1/2 21.24 21.44 2.77 3.28 600 3.73 4.24 850
2 3/4 26.57 26.77 287 3.38 480 3.91 4.42 690
3 1 33.27 33.53 3.38 3.89 450 4.55 5.08 630
4 1 1/4 42.03 42.29 3.56 4.07 370 4.85 5.43 520
5 1 1/2 48.11 48.41 3.68 4.19 330 5.08 5.69 470
6 2 60.17 60.47 3.91 4.42 280 5.54 6.2 400
7 2% 72.84 73.2 5.16 5.77 300 7.01 7.85 420
8 3 88.7 89.1 5.49 6.15 260 7.62 8.53 370
9 4 114.07 114.53 6.02 6.73 220 8.56 9.58 320
10 6 168 168.56 7.11 7.97 180 10.97 12.29 280
11 8 218.7 219.46 8.18 9.17 160 12.7 14.22 250

Standard length: 5.8 and 6 mt
Color: White
Socket type: Solvent end
