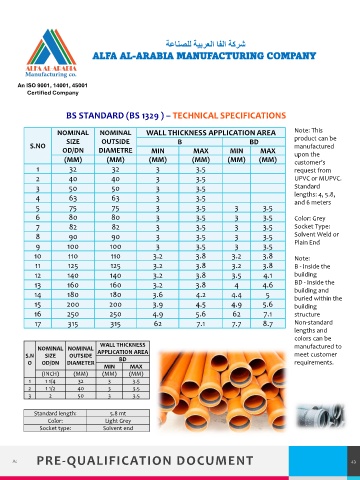

BS STANDARD (BS 1329 ) – TECHNICAL SPECIFICATIONS

NOMINAL NOMINAL WALL THICKNESS APPLICATION AREA Note: This
SIZE OUTSIDE B BD product can be
S.NO manufactured
OD/DN DIAMETRE MIN MAX MIN MAX upon the
(MM) (MM) (MM) (MM) (MM) (MM) customer’s
1 32 32 3 3.5 request from
2 40 40 3 3.5 UPVC or MUPVC.
3 50 50 3 3.5 Standard
lengths: 4, 5.8,
4 63 63 3 3.5
and 6 meters
5 75 75 3 3.5 3 3.5
6 80 80 3 3.5 3 3.5 Color: Grey
7 82 82 3 3.5 3 3.5 Socket Type:
8 90 90 3 3.5 3 3.5 Solvent Weld or
9 100 100 3 3.5 3 3.5 Plain End
10 110 110 3.2 3.8 3.2 3.8 Note:
11 125 125 3.2 3.8 3.2 3.8 B - Inside the
12 140 140 3.2 3.8 3.5 4.1 building
13 160 160 3.2 3.8 4 4.6 BD - Inside the
building and
14 180 180 3.6 4.2 4.4 5 buried within the
15 200 200 3.9 4.5 4.9 5.6 building
16 250 250 4.9 5.6 62 7.1 structure
17 315 315 62 7.1 7.7 8.7 Non-standard
lengths and
colors can be
WALL THICKNESS manufactured to
NOMINAL NOMINAL
S.N SIZE OUTSIDE APPLICATION AREA meet customer
BD
O OD/DN DIAMETER requirements.
MIN MAX
(INCH) (MM) (MM) (MM)
1 1 1/4 32 3 3.5
2 1 1/2 40 3 3.5
3 2 50 3 3.5

Standard length: 5.8 mt
Color: Light Grey
Socket type: Solvent end
