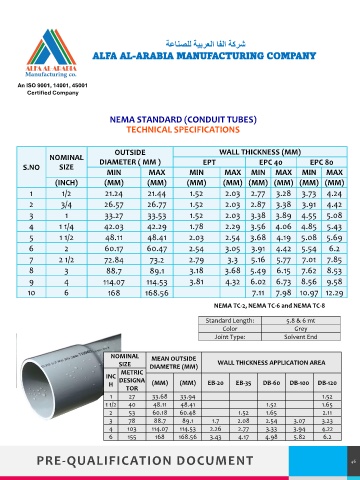

Page 46 - ALFA AL-ARABIA MANUFACTURING COMPANY Pre Qualification

ةعانصلل ةيبرعلا افلا ةكرش
ALFA AL-ARABIA MANUFACTURING COMPANY

An ISO 9001, 14001, 45001
Certified Company

NEMA STANDARD (CONDUIT TUBES)
TECHNICAL SPECIFICATIONS

OUTSIDE WALL THICKNESS (MM)
NOMINAL
DIAMETER ( MM ) EPT EPC 40 EPC 80
S.NO SIZE
MIN MAX MIN MAX MIN MAX MIN MAX
(INCH) (MM) (MM) (MM) (MM) (MM) (MM) (MM) (MM)
1 1/2 21.24 21.44 1.52 2.03 2.77 3.28 3.73 4.24
2 3/4 26.57 26.77 1.52 2.03 2.87 3.38 3.91 4.42
3 1 33.27 33.53 1.52 2.03 3.38 3.89 4.55 5.08
4 1 1/4 42.03 42.29 1.78 2.29 3.56 4.06 4.85 5.43
5 1 1/2 48.11 48.41 2.03 2.54 3.68 4.19 5.08 5.69
6 2 60.17 60.47 2.54 3.05 3.91 4.42 5.54 6.2
7 2 1/2 72.84 73.2 2.79 3.3 5.16 5.77 7.01 7.85
8 3 88.7 89.1 3.18 3.68 5.49 6.15 7.62 8.53
9 4 114.07 114.53 3.81 4.32 6.02 6.73 8.56 9.58
10 6 168 168.56 7.11 7.98 10.97 12.29

NEMA TC-2, NEMA TC-6 and NEMA TC-8

Standard Length: 5.8 & 6 mt
Color Grey
Joint Type: Solvent End

NOMINAL
MEAN OUTSIDE
SIZE WALL THICKNESS APPLICATION AREA
DIAMETRE (MM)
METRIC
INC DESIGNA
H (MM) (MM) EB-20 EB-35 DB-60 DB-100 DB-120
TOR
1 27 33.68 33.94 1.52
1 1/2 40 48.11 48.41 1.52 1.65
2 53 60.18 60.48 1.52 1.65 2.11
3 78 88.7 89.1 1.7 2.08 2.54 3.07 3.23
4 103 114.07 114.53 2.26 2.77 3.33 3.94 4.22
6 155 168 168.56 3.43 4.17 4.98 5.82 6.2

PRE-QUALIFICATION DOCUMENT TREY 46
