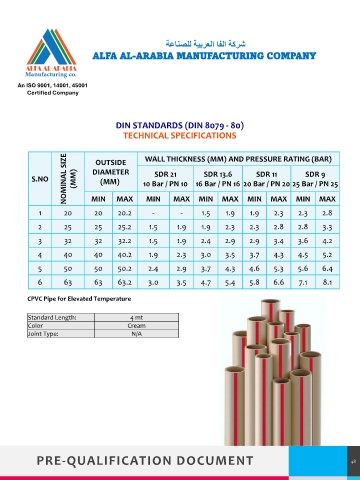

DIN STANDARDS (DIN 8079 - 80)
TECHNICAL SPECIFICATIONS
NOMINAL SIZE DIAMETER WALL THICKNESS (MM) AND PRESSURE RATING (BAR)
OUTSIDE
SDR 13.6
SDR 11
SDR 21
SDR 9
S.NO (MM) (MM) 10 Bar / PN 10 16 Bar / PN 16 20 Bar / PN 20 25 Bar / PN 25
1.5
-
-
2.3
2.8
2.3
1.9
1.9
20
1 20 MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX
20.2
2 25 25 25.2 1.5 1.9 1.9 2.3 2.3 2.8 2.8 3.3
3 32 32 32.2 1.5 1.9 2.4 2.9 2.9 3.4 3.6 4.2
4 40 40 40.2 1.9 2.3 3.0 3.5 3.7 4.3 4.5 5.2
5 50 50 50.2 2.4 2.9 3.7 4.3 4.6 5.3 5.6 6.4
6 63 63 63.2 3.0 3.5 4.7 5.4 5.8 6.6 7.1 8.1
CPVC Pipe for Elevated Temperature
Standard Length: 4 mt
Color Cream
Joint Type: N/A
