ةعانصلل ةيبرعلا افلا ةكرش
ALFA AL-ARABIA MANUFACTURING COMPANY
An ISO 9001, 14001, 45001
Certified Company

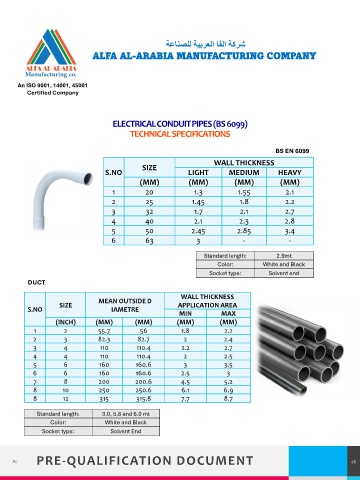

ELECTRICAL CONDUIT PIPES (BS 6099)
TECHNICAL SPECIFICATIONS
BS EN 6099
WALL THICKNESS
SIZE
S.NO LIGHT MEDIUM HEAVY
(MM) (MM) (MM) (MM)
1 20 1.3 1.55 2.1
2 25 1.45 1.8 2.2
3 32 1.7 2.1 2.7
4 40 2.1 2.3 2.8
5 50 2.45 2.85 3.4
6 63 3 - -
Standard length: 2.9mt
Color: White and Black
Socket type: Solvent end
DUCT
WALL THICKNESS
MEAN OUTSIDE D
SIZE APPLICATION AREA
S.NO IAMETRE
MIN MAX
(INCH) (MM) (MM) (MM) (MM)
1 2 55.7 56 1.8 2.2
2 3 82.3 82.7 2 2.4
3 4 110 110.4 2.2 2.7
4 4 110 110.4 2 2.5
5 6 160 160.6 3 3.5
6 6 160 160.6 2.5 3
7 8 200 200.6 4.5 5.2
8 10 250 250.6 6.1 6.9
8 12 315 315.8 7.7 8.7
Standard length: 3.0, 5.8 and 6.0 mt
Color: White and Black
Socket type: Solvent End
PRE-QUALIFICATION DOCUMENT
