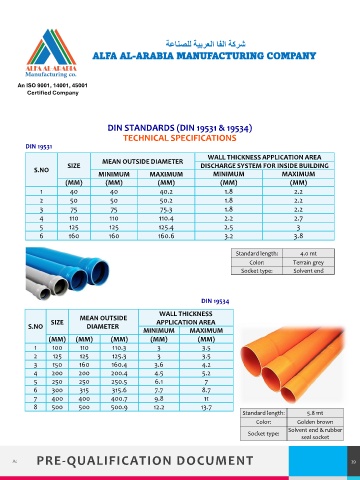

DIN STANDARDS (DIN 19531 & 19534)
TECHNICAL SPECIFICATIONS
DIN 19531
WALL THICKNESS APPLICATION AREA
MEAN OUTSIDE DIAMETER
SIZE DISCHARGE SYSTEM FOR INSIDE BUILDING
S.NO
MINIMUM MAXIMUM MINIMUM MAXIMUM
(MM) (MM) (MM) (MM) (MM)
1 40 40 40.2 1.8 2.2
2 50 50 50.2 1.8 2.2
3 75 75 75.3 1.8 2.2
4 110 110 110.4 2.2 2.7
5 125 125 125.4 2.5 3
6 160 160 160.6 3.2 3.8

Standard length: 4.0 mt
Color: Terrain grey
Socket type: Solvent end

DIN 19534
WALL THICKNESS
MEAN OUTSIDE
SIZE APPLICATION AREA
S.NO DIAMETER
MINIMUM MAXIMUM
(MM) (MM) (MM) (MM) (MM)
1 100 110 110.3 3 3.5
2 125 125 125.3 3 3.5
3 150 160 160.4 3.6 4.2
4 200 200 200.4 4.5 5.2
5 250 250 250.5 6.1 7
6 300 315 315.6 7.7 8.7
7 400 400 400.7 9.8 11
8 500 500 500.9 12.2 13.7
Standard length: 5.8 mt
Color: Golden brown
Solvent end & rubber
Socket type:
seal socket
