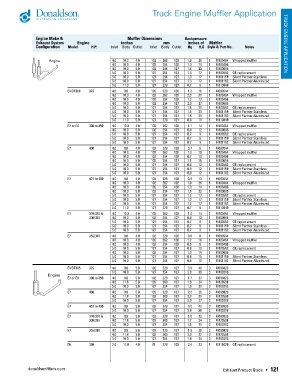

Page 123 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Truck Engine Muffler Application

Engine Make & Muffler Dimensions Backpressure
Exhaust System Engine inches mm inches of Muffler TRUCK ENGINE APPLICATION
Configuration Model H.P. Inlet Body Outlet Inlet Body Outlet Hg H 2 0 Style & Part No. Notes

4.0 10.3 4.0 102 262 102 1.9 26 1 M100464 Wrapped muffler
4.0 10.0 4.0 102 254 102 1.0 14 1 M100466
4.0 10.0 5.0 102 254 127 1.6 22 1 M100695
5.0 10.0 5.0 127 254 127 1.3 17 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 1.3 17 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.3 17 1 M101182 Silent Partner Aluminized
5.0 11.0 5.0 127 279 127 0.7 9 1 M110849
ENDT866 375 4.0 9.0 4.0 102 229 102 1.2 16 1 M090544
4.0 10.3 4.0 102 262 102 2.3 31 1 M100464 Wrapped muffler
4.0 10.0 4.0 102 254 102 1.2 17 1 M100466
4.0 10.0 5.0 102 254 127 2.0 27 1 M100695
5.0 10.0 5.0 127 254 127 1.5 21 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 1.5 21 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.5 21 1 M101182 Silent Partner Aluminized
5.0 11.0 5.0 127 279 127 0.8 11 1 M110849
E7 or E6 300 to 350 4.0 10.3 4.0 102 262 102 1.1 14 1 M100464 Wrapped muffler
4.0 10.0 5.0 102 254 127 0.9 12 1 M100695
5.0 10.0 5.0 127 254 127 0.7 9 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 0.7 9 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 0.7 9 1 M101182 Silent Partner Aluminized
E7 400 4.0 9.0 4.0 102 229 102 0.7 9 1 M090544
4.0 10.3 4.0 102 262 102 1.3 18 1 M100464 Wrapped muffler
4.0 10.0 4.0 102 254 102 0.7 10 1 M100466
4.0 10.0 5.0 102 254 127 1.1 15 1 M100695
5.0 10.0 5.0 127 254 127 0.9 12 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 0.9 12 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 0.9 12 1 M101182 Silent Partner Aluminized
E7 427 to 460 4.0 9.0 4.0 102 229 102 0.9 13 1 M090544
4.0 10.3 4.0 102 262 102 1.9 26 1 M100464 Wrapped muffler
4.0 10.0 4.0 102 254 102 1.0 14 1 M100466
4.0 10.0 5.0 102 254 127 1.6 22 1 M100695
5.0 10.0 5.0 127 254 127 1.2 17 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 1.2 17 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.2 17 1 M101182 Silent Partner Aluminized
5.0 11.0 5.0 127 279 127 0.7 9 1 M110849
E7 310/330 & 4.0 10.3 4.0 102 262 102 1.0 14 1 M100464 Wrapped muffler
330/355 4.0 10.0 5.0 102 254 127 0.9 12 1 M100695
5.0 10.0 5.0 127 254 127 0.7 9 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 0.7 9 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 0.7 9 1 M101182 Silent Partner Aluminized
E7 355/380 4.0 9.0 4.0 102 229 102 0.6 8 1 M090544
4.0 10.3 4.0 102 262 102 1.2 16 1 M100464 Wrapped muffler
4.0 10.0 4.0 102 254 102 0.6 8 1 M100466
5.0 10.0 5.0 127 254 127 0.8 10 1 M100582 OE replacement
4.0 10.0 5.0 102 254 127 1.0 14 1 M100695
5.0 10.0 5.0 127 254 127 0.8 10 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 0.8 10 1 M101182 Silent Partner Aluminized
ENDT865 325 4.0 9.0 5.0 102 229 127 3.0 40 3 M090823
5.0 10.0 5.0 127 254 127 2.9 39 3 M100213

E7 or E6 300 to 350 4.0 9.0 5.0 102 229 127 1.7 23 3 M090823
4.0 11.8 5.0 102 300 127 1.8 24 3 M120598
5.0 10.0 5.0 127 254 127 1.6 21 3 M100213
E7 400 4.0 9.0 5.0 102 229 127 2.2 29 3 M090823
4.0 11.8 5.0 102 300 127 2.3 31 3 M120598
5.0 10.0 5.0 127 254 127 2.0 27 3 M100213
E7 457 to 460 4.0 9.0 5.0 102 229 127 3.0 41 3 M090823
5.0 10.0 5.0 127 254 127 2.8 38 3 M100213
E7 310/330 & 4.0 9.0 5.0 102 229 127 1.6 22 3 M090823
330/355 4.0 11.8 5.0 102 300 127 1.7 24 3 M120598
5.0 10.0 5.0 127 254 127 1.5 21 3 M100213
E7 355/380 4.0 9.0 5.0 102 229 127 1.9 26 3 M090823
4.0 11.8 5.0 102 300 127 2.0 27 3 M120598
5.0 10.0 5.0 127 254 127 1.8 24 3 M100213
E6 350 3.0 11.0 4.0 76 279 102 2.4 33 1 M111029 OE replacement

donaldsonfilters.com Exhaust Product Guide • 121
