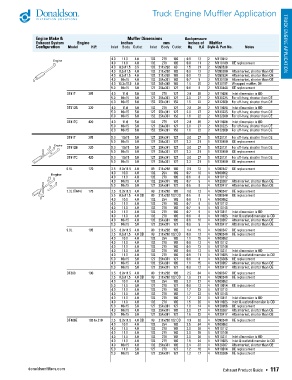

Page 119 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Truck Engine Muffler Application

Engine Make & Muffler Dimensions Backpressure
Exhaust System Engine inches mm inches of Muffler TRUCK ENGINE APPLICATION
Configuration Model H.P. Inlet Body Outlet Inlet Body Outlet Hg H 2 0 Style & Part No. Notes

4.0 11.0 4.0 102 279 102 0.9 13 2 M110012

4.0 11.0 4.0 102 279 102 0.8 11 2 M110189 OE replacement
4.0 8.3x11.5 3.5 102 211x292 89 1.5 21 2 M090538
4.0 8.3x11.5 4.0 102 211x292 102 0.9 13 2 M090280 Aftermarket, shorter than OE
4.0 8.3x11.5 4.0 102 211x292 102 0.9 12 2 M090534 Aftermarket, shorter than OE
4.0 10x15 4.0 102 254x381 102 0.7 9 2 M120100 Aftermarket, shorter than OE
4.0 10.3x15.3 4.0 102 261x389 102 1.4 20 2 M120197 Wrapped muffler, OE
5.0 10x15 5.0 127 254x381 127 0.6 8 2 M120448 OE replacement
DT817 385 4.0 11.0 5.0 102 279 127 2.8 39 2 M111028 Inlet dimension is OD
5.0 10x15 5.0 127 254x381 127 2.0 27 2 M120225 For off-hwy, shorter than OE
6.0 10x15 6.0 152 254x381 152 1.6 22 2 M122300 For off-hwy, shorter than OE
DT812B 320 4.0 11.0 5.0 102 279 127 2.8 39 2 M111028 Inlet dimension is OD
5.0 10x15 5.0 127 254x381 127 2.0 27 2 M120225 For off-hwy, shorter than OE
6.0 10x15 6.0 152 254x381 152 1.6 22 2 M122300 For off-hwy, shorter than OE
DT817C 420 4.0 11.0 5.0 102 279 127 2.8 39 2 M111028 Inlet dimension is OD
5.0 10x15 5.0 127 254x381 127 2.0 27 2 M120225 For off-hwy, shorter than OE
6.0 10x15 6.0 152 254x381 152 1.6 22 2 M122300 For off-hwy, shorter than OE
DT817 385 5.0 10x15 5.0 127 254x381 127 2.0 27 5 M120131 For off-hwy, shorter than OE
5.0 10x15 5.0 127 254x381 127 2.3 31 5 M120450 OE replacement

DT812B 320 5.0 10x15 5.0 127 254x381 127 2.0 27 5 M120131 For off-hwy, shorter than OE
5.0 10x15 5.0 127 254x381 127 2.3 31 5 M120450 OE replacement
DT817C 420 5.0 10x15 5.0 127 254x381 127 2.0 27 5 M120131 For off-hwy, shorter than OE
5.0 10x15 5.0 127 254x381 127 2.3 31 5 M120450 OE replacement
6.9L 170 3.5 8.3x11.5 4.0 89 211x292 102 0.9 12 4 M090547 OE replacement
4.0 10.0 4.0 102 254 102 0.7 10 4 M100052
4.0 11.0 4.0 102 279 102 0.6 8 4 M110112
4.0 10x15 4.0 102 254x381 102 0.7 9 4 M120367 Aftermarket, shorter than OE
5.0 10x15 5.0 127 254x381 127 0.6 8 4 M120417 Aftermarket, shorter than OE
7.3L (T444) 175 3.5 8.3x11.5 4.0 89 211x292 102 1.0 13 4 M090547 OE replacement
3.5 8.3x11.5 4.0 OD 89 211x292 102 OD 0.6 8 4 M090548 OE replacement
4.0 10.0 4.0 102 254 102 0.8 11 4 M100052
4.0 11.0 4.0 102 279 102 0.7 9 4 M110112
4.0 11.0 4.0 102 279 102 0.7 9 4 M110148
4.0 11.0 4.0 102 279 102 0.7 9 4 M110311 Inlet dimension is OD
4.0 11.0 4.0 102 279 102 0.6 8 4 M111025 Inlet & outlet dimension is OD
4.0 10x15 4.0 102 254x381 102 0.8 10 4 M120367 Aftermarket, shorter than OE
5.0 10x15 5.0 127 254x381 127 0.6 9 4 M120417 Aftermarket, shorter than OE
9.0L 185 3.5 8.3x11.5 4.0 89 211x292 102 1.4 19 4 M090547 OE replacement
3.5 8.3x11.5 4.0 OD 89 211x292 102 OD 0.9 12 4 M090548 OE replacement
4.0 10.0 4.0 102 254 102 1.1 15 4 M100052
4.0 11.0 4.0 102 279 102 0.9 13 4 M110112
4.0 11.0 4.0 102 279 102 0.9 13 4 M110148
4.0 11.0 4.0 102 279 102 0.9 13 4 M110311 Inlet dimension is OD
4.0 11.0 4.0 102 279 102 0.8 11 4 M111025 Inlet & outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 0.6 8 4 M120366 OE replacement
4.0 10x15 4.0 102 254x381 102 1.1 15 4 M120367 Aftermarket, shorter than OE
5.0 10x15 5.0 127 254x381 127 0.9 12 4 M120417 Aftermarket, shorter than OE
DT360 190 3.5 8.3x11.5 4.0 89 211x292 102 2.5 34 4 M090547 OE replacement
3.5 8.3x11.5 4.0 OD 89 211x292 102 OD 1.6 21 4 M090548 OE replacement
4.0 10.0 4.0 102 254 102 2.0 27 4 M100052
5.0 11.0 5.0 127 279 127 0.9 13 4 M110014 OE replacement
4.0 11.0 4.0 102 279 102 1.7 23 4 M110112
4.0 11.0 4.0 102 279 102 1.7 23 4 M110148
4.0 11.0 4.0 102 279 102 1.7 23 4 M110311 Inlet dimension is OD
4.0 11.0 4.0 102 279 102 1.5 20 4 M111025 Inlet & outlet dimension is OD
5.0 10x15 5.0 127 254x381 127 1.0 14 4 M120366 OE replacement
4.0 10x15 4.0 102 254x381 102 2.0 27 4 M120367 Aftermarket, shorter than OE
5.0 10x15 5.0 127 254x381 127 1.6 22 4 M120417 Aftermarket, shorter than OE
DT466E 195 to 210 3.5 8.3x11.5 4.0 OD 89 211x292 102 OD 1.9 26 4 M090548 OE replacement
4.0 10.0 4.0 102 254 102 2.5 34 4 M100052
4.0 11.0 4.0 102 279 102 2.0 28 4 M110112
4.0 11.0 4.0 102 279 102 2.0 28 4 M110148
4.0 11.0 4.0 102 279 102 2.0 28 4 M110311 Inlet dimension is OD
4.0 11.0 4.0 102 279 102 1.8 24 4 M111025 Inlet & outlet dimension is OD
4.0 10x15 4.0 102 254x381 102 2.4 33 4 M120367 Aftermarket, shorter than OE
5.0 11.0 5.0 127 279 127 1.2 16 4 M110014 OE replacement
5.0 10x15 5.0 127 254x381 127 1.2 17 4 M120366 OE replacement

donaldsonfilters.com Exhaust Product Guide • 117
