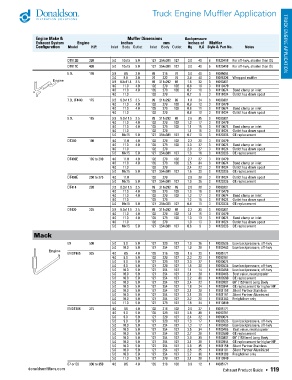

Page 121 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Truck Engine Muffler Application

Engine Make & Muffler Dimensions Backpressure
Exhaust System Engine inches mm inches of Muffler TRUCK ENGINE APPLICATION
Configuration Model H.P. Inlet Body Outlet Inlet Body Outlet Hg H 2 0 Style & Part No. Notes

DT812B 320 5.0 10x15 5.0 127 254x381 127 3.0 40 6 M120418 For off-hwy, shorter than OE
DT817C 420 5.0 10x15 5.0 127 254x381 127 3.0 40 6 M120418 For off-hwy, shorter than OE
6.9L 170 3.5 8.5 3.0 89 216 76 3.0 40 3 M085084
3.0 8.8 3.0 76 222 76 2.9 40 3 M085226 Wrapped muffler
3.5 8.3x11.5 3.5 89 211x292 89 1.6 22 3 M090301
4.0 11.0 4.0 102 279 102 0.8 10 3 M110479
4.0 11.0 4.0 102 279 102 0.7 10 3 M110674 Band clamp on inlet
4.0 11.0 102 279 0.7 9 3 M111024 Outlet has down spout
7.3L (T444) 175 3.5 8.3x11.5 3.5 89 211x292 89 1.8 24 3 M090301
4.0 11.0 4.0 102 279 102 0.9 12 3 M110479
4.0 11.0 4.0 102 279 102 0.8 11 3 M110674 Band clamp on inlet
4.0 11.0 102 279 0.8 10 3 M111024 Outlet has down spout
9.0L 185 3.5 8.3x11.5 3.5 89 211x292 89 2.6 35 3 M090301
4.0 11.0 4.0 102 279 102 1.2 17 3 M110479
4.0 11.0 4.0 102 279 102 1.1 15 3 M110674 Band clamp on inlet
4.0 11.0 102 279 1.1 15 3 M111024 Outlet has down spout
5.0 10x15 5.0 127 254x381 127 0.7 10 3 M120235 OE replacement
DT360 190 4.0 11.0 4.0 102 279 102 2.2 30 3 M110479
4.0 11.0 4.0 102 279 102 2.0 27 3 M110674 Band clamp on inlet
4.0 11.0 102 279 2.0 27 3 M111024 Outlet has down spout
5.0 10x15 5.0 127 254x381 127 1.3 18 3 M120235 OE replacement
DT466E 195 to 210 4.0 11.0 4.0 102 279 102 2.7 37 3 M110479
4.0 11.0 4.0 102 279 102 2.5 34 3 M110674 Band clamp on inlet
4.0 11.0 102 279 2.4 33 3 M111024 Outlet has down spout
5.0 10x15 5.0 127 254x381 127 1.6 22 3 M120235 OE replacement
DT466E 250 to 275 4.0 11.0 102 279 2.9 39 3 M111024 Outlet has down spout
5.0 10x15 5.0 127 254x381 127 1.9 26 3 M120235 OE replacement
DT414 220 3.5 8.3x11.5 3.5 89 211x292 89 2.8 38 3 M090301
4.0 11.0 4.0 102 279 102 1.3 18 3 M110479
4.0 11.0 4.0 102 279 102 1.2 17 3 M110674 Band clamp on inlet
4.0 11.0 102 279 1.2 16 3 M111024 Outlet has down spout
5.0 10x15 5.0 127 254x381 127 0.8 11 3 M120235 OE replacement
DT420 225 3.5 8.3x11.5 3.5 89 211x292 89 2.2 30 3 M090301
4.0 11.0 4.0 102 279 102 1.1 15 3 M110479
4.0 11.0 4.0 102 279 102 1.0 13 3 M110674 Band clamp on inlet
4.0 11.0 102 279 1.0 13 3 M111024 Outlet has down spout
5.0 10x15 5.0 127 254x381 127 0.6 9 3 M120235 OE replacement
Mack
E9 500 5.0 9.0 5.0 127 229 127 1.9 26 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.9 26 1 M100463 Low backpressure, off-hwy

ENDT865 325 4.0 8.5 4.0 102 216 102 1.6 22 1 M085171
4.0 9.0 5.0 102 229 127 2.3 32 1 M090781
5.0 9.0 5.0 127 229 127 2.0 27 1 M090074
5.0 9.0 5.0 127 229 127 1.5 20 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.1 14 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.1 29 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 2.2 30 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 2.4 33 1 M100807 60” (1524mm) Long Body
5.0 10.0 5.0 127 254 127 1.8 24 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 2.1 29 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.1 29 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 2.2 30 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 1.8 24 1 M110849
ENDT866 375 4.0 8.5 4.0 102 216 102 2.0 27 1 M085171
4.0 9.0 5.0 102 229 127 2.8 38 1 M090781
5.0 9.0 5.0 127 229 127 2.4 32 1 M090074
5.0 9.0 5.0 127 229 127 1.3 17 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.3 17 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.5 34 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 2.7 36 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 2.9 39 1 M100807 60” (1524mm) Long Body
5.0 10.0 5.0 127 254 127 2.1 29 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 2.6 35 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.6 35 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 2.7 36 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 2.1 29 1 M110849
E7 or E6 300 to 350 4.0 8.5 4.0 102 216 102 0.9 12 1 M085171
donaldsonfilters.com Exhaust Product Guide • 119
