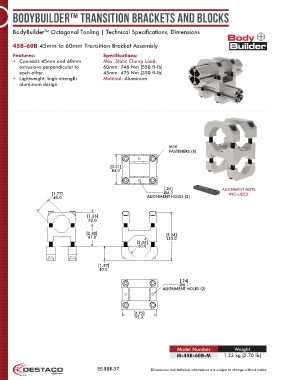

BodyBuilder™ Transition Brackets and Blocks
BodyBuilder™ Octagonal Tooling | Technical Specifications, Dimensions
45B-60B 45mm to 60mm Transition Bracket Assembly
Features: Specifications:
• Connects 45mm and 60mm Max. Static Clamp Load:
extrusions perpendicular to 60mm: 746 Nm [550 ft-lb]
each other. 45mm: 475 Nm [350 ft-lb]
• Lightweight, high-strength Material: Aluminum
aluminum design.
M10
FASTENERS (8)
[3.31]
84.0
[.24] ALIGNMENT NUTS
[1.77] Ø6.1 INCLUDED
45.0 ALIGNMENT HOLES (2)
[1.26]
32.0
[2.40] [5.24]
61.0 133.0
[2.36]
60.0
[1.57]
40.0
[.24]
Ø6.1
ALIGNMENT HOLES (2)
[3.75]
95.3
Model Number Weight
M-45B-60B-M 1.23 kg [2.70 lb]
EE-BBR-37 Dimensions and technical information are subject to change without notice
