BodyBuilder™ Transition Brackets and Blocks


                                        BodyBuilder™ Octagonal Tooling | Technical Specifications, Dimensions

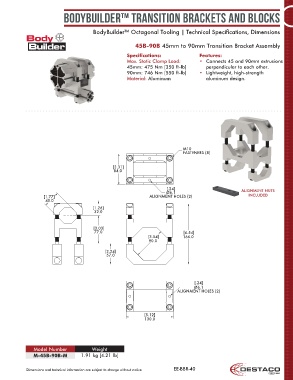

                                                          45B-90B 45mm to 90mm Transition Bracket Assembly

                                                      Specifications:               Features:
                                                      Max. Static Clamp Load:       •  Connects 45 and 90mm extrusions
                                                      45mm: 475 Nm [350 ft-lb]         perpendicular to each other.
                                                      90mm: 746 Nm [550 ft-lb]      •  Lightweight, high-strength
                                                      Material: Aluminum               aluminum design.
















                                                                             M10
                                                                             FASTENERS (8)


                                                [3.31]
                                                   84.0


                                                                       [.24]
                                                                      Ø6.1                            ALIGNMENT NUTS
                   [1.77]                                      ALIGNMENT HOLES (2)                       INCLUDED
                       45.0
                                        [1.26]
                                          32.0


                                        [3.03]
                                          77.0                                [6.54]

                                                               [3.54]        166.0

                                                               90.0
                                             [2.24]
                                               57.0





                                                                                  [.24]
                                                                                  Ø6.1
                                                                           ALIGNMENT HOLES (2)




                                                             [5.12]


                                                             130.0




               Model Number            Weight
               M-45B-90B-M         1.91 kg [4.21 lb]


            Dimensions and technical information are subject to change without notice  EE-BBR-40
