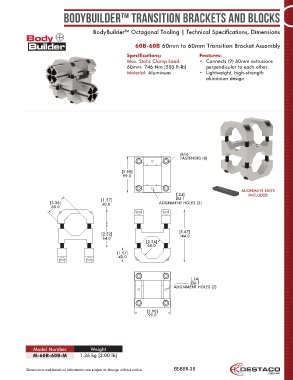

BodyBuilder™ Transition Brackets and Blocks
BodyBuilder™ Octagonal Tooling | Technical Specifications, Dimensions
60B-60B 60mm to 60mm Transition Bracket Assembly
Specifications: Features:
Max. Static Clamp Load: • Connects (2) 60mm extrusions
60mm: 746 Nm [550 ft-lb] perpendicular to each other.
Material: Aluminum • Lightweight, high-strength
aluminum design
M10
FASTENERS (8)
[3.90]
99.0
ALIGNMENT NUTS
[.24] INCLUDED
[1.57] Ø6.1
[2.36] 40.0 ALIGNMENT HOLES (2)
60.0
[2.52] [5.67]
64.0 144.0
[2.36]
60.0
[1.57]
40.0
[.24]
Ø6.1
ALIGNMENT HOLES (2)
[3.90]
99.0
Model Number Weight
M-60B-60B-M 1.36 kg [3.00 lb]
Dimensions and technical information are subject to change without notice EE-BBR-38
