BodyBuilder™ Transition Brackets and Blocks
BodyBuilder™ Octagonal Tooling | Technical Specifications, Dimensions

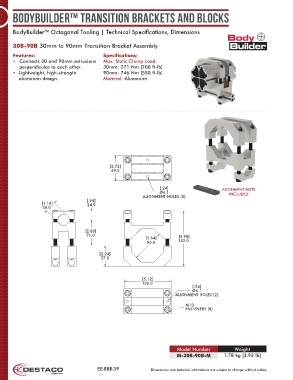

30B-90B 30mm to 90mm Transition Bracket Assembly
Features: Specifications:
• Connects 30 and 90mm extrusions Max. Static Clamp Load:
perpendicular to each other. 30mm: 271 Nm [200 ft-lb]
• Lightweight, high-strength 90mm: 746 Nm [550 ft-lb]
aluminum design. Material: Aluminum
[2.72]
69.0
[.24] ALIGNMENT NUTS
Ø6.1
ALIGNMENT HOLES (2) INCLUDED
[.94]
[1.18] 24.0
30.0
[2.80]
71.0 [5.98]
[3.54]
90.0 152.0
[2.24]
57.0
[5.12]
130.0
[.24]
Ø6.1
ALIGNMENT HOLES (2)
M10
FASTENERS (8)
Model Number Weight
M-30B-90B-M 1.78 kg [3.93 lb]
EE-BBR-39 Dimensions and technical information are subject to change without notice
