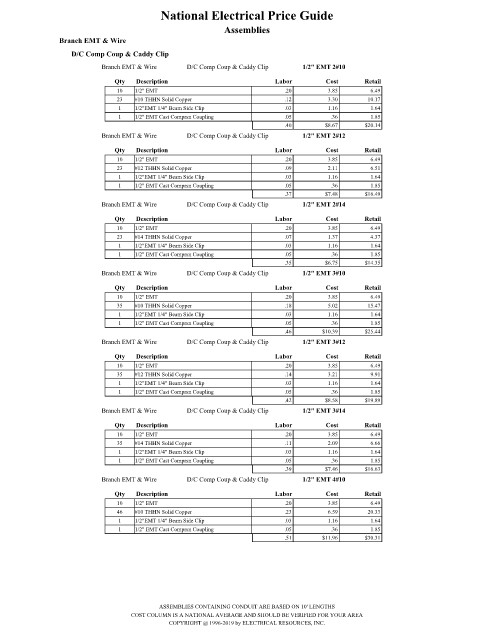

Page 1398 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire
D/C Comp Coup & Caddy Clip
Branch EMT & Wire D/C Comp Coup & Caddy Clip 1/2" EMT 2#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
23 #10 THHN Solid Copper .12 3.30 10.17
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
.40 $8.67 $20.14
Branch EMT & Wire D/C Comp Coup & Caddy Clip 1/2" EMT 2#12

Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
23 #12 THHN Solid Copper .09 2.11 6.51
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
.37 $7.48 $16.49
Branch EMT & Wire D/C Comp Coup & Caddy Clip 1/2" EMT 2#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
23 #14 THHN Solid Copper .07 1.37 4.37
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
.35 $6.75 $14.35
Branch EMT & Wire D/C Comp Coup & Caddy Clip 1/2" EMT 3#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #10 THHN Solid Copper .18 5.02 15.47
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
.46 $10.39 $25.44
Branch EMT & Wire D/C Comp Coup & Caddy Clip 1/2" EMT 3#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #12 THHN Solid Copper .14 3.21 9.91
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
.42 $8.58 $19.89
Branch EMT & Wire D/C Comp Coup & Caddy Clip 1/2" EMT 3#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #14 THHN Solid Copper .11 2.09 6.66
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
.39 $7.46 $16.63
Branch EMT & Wire D/C Comp Coup & Caddy Clip 1/2" EMT 4#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #10 THHN Solid Copper .23 6.59 20.33
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
.51 $11.96 $30.31

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
