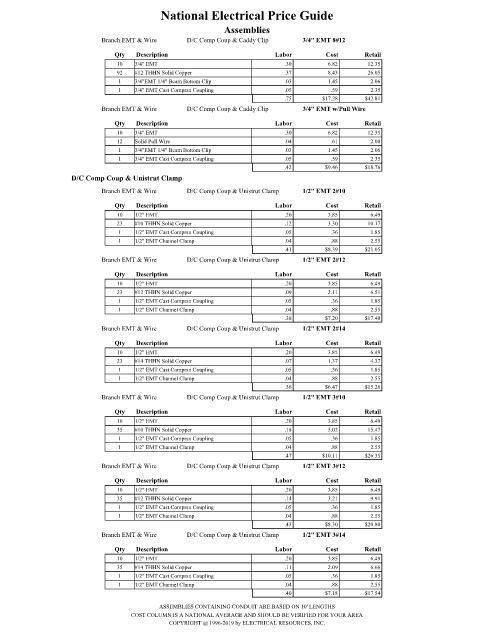

Page 1402 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire D/C Comp Coup & Caddy Clip 3/4" EMT 8#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
92 #12 THHN Solid Copper .37 8.43 26.05
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
.75 $17.28 $42.81
Branch EMT & Wire D/C Comp Coup & Caddy Clip 3/4" EMT w/Pull Wire
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 Solid Pull Wire .04 .61 2.00
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
.42 $9.46 $18.76
D/C Comp Coup & Unistrut Clamp
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 1/2" EMT 2#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
23 #10 THHN Solid Copper .12 3.30 10.17
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT Channel Clamp .04 .88 2.55
.41 $8.39 $21.05
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 1/2" EMT 2#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
23 #12 THHN Solid Copper .09 2.11 6.51
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT Channel Clamp .04 .88 2.55
.38 $7.20 $17.40
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 1/2" EMT 2#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
23 #14 THHN Solid Copper .07 1.37 4.37
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT Channel Clamp .04 .88 2.55
.36 $6.47 $15.26
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 1/2" EMT 3#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #10 THHN Solid Copper .18 5.02 15.47
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT Channel Clamp .04 .88 2.55
.47 $10.11 $26.35
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 1/2" EMT 3#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #12 THHN Solid Copper .14 3.21 9.91
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT Channel Clamp .04 .88 2.55
.43 $8.30 $20.80
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 1/2" EMT 3#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #14 THHN Solid Copper .11 2.09 6.66
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT Channel Clamp .04 .88 2.55
.40 $7.18 $17.54
ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
