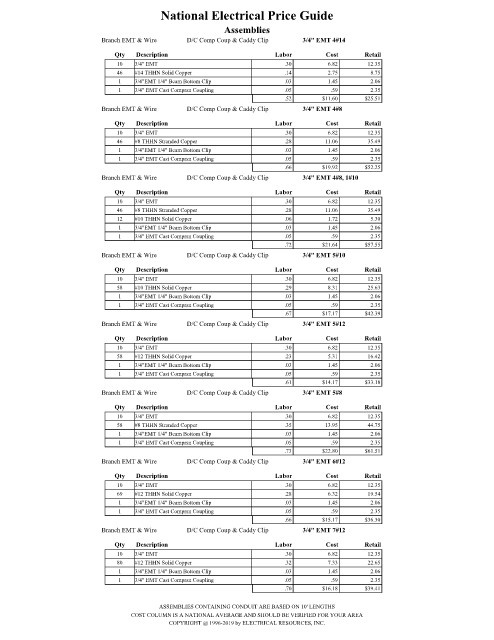

Page 1401 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire D/C Comp Coup & Caddy Clip 3/4" EMT 4#14
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #14 THHN Solid Copper .14 2.75 8.75
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
.52 $11.60 $25.51
Branch EMT & Wire D/C Comp Coup & Caddy Clip 3/4" EMT 4#8
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
.66 $19.92 $52.25
Branch EMT & Wire D/C Comp Coup & Caddy Clip 3/4" EMT 4#8, 1#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
12 #10 THHN Solid Copper .06 1.72 5.30
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
.72 $21.64 $57.55
Branch EMT & Wire D/C Comp Coup & Caddy Clip 3/4" EMT 5#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #10 THHN Solid Copper .29 8.31 25.63
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
.67 $17.17 $42.39
Branch EMT & Wire D/C Comp Coup & Caddy Clip 3/4" EMT 5#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #12 THHN Solid Copper .23 5.31 16.42
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
.61 $14.17 $33.18
Branch EMT & Wire D/C Comp Coup & Caddy Clip 3/4" EMT 5#8
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #8 THHN Stranded Copper .35 13.95 44.75
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
.73 $22.80 $61.51
Branch EMT & Wire D/C Comp Coup & Caddy Clip 3/4" EMT 6#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
69 #12 THHN Solid Copper .28 6.32 19.54
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
.66 $15.17 $36.30
Branch EMT & Wire D/C Comp Coup & Caddy Clip 3/4" EMT 7#12

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
80 #12 THHN Solid Copper .32 7.33 22.65
1 3/4"EMT 1/4" Beam Bottom Clip .03 1.45 2.06
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
.70 $16.18 $39.41

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
