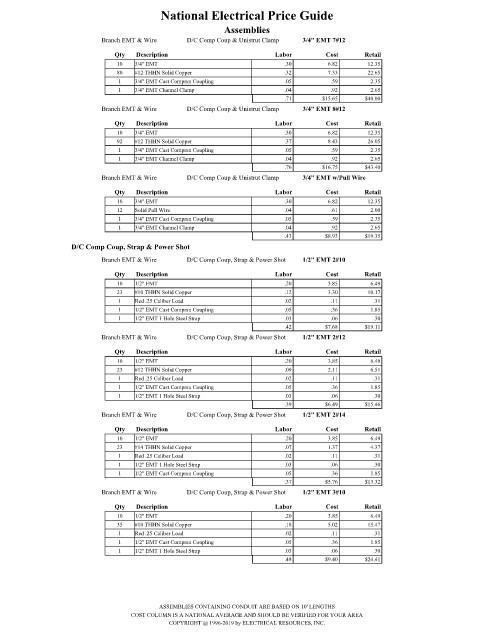

Page 1406 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 3/4" EMT 7#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
80 #12 THHN Solid Copper .32 7.33 22.65
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
1 3/4" EMT Channel Clamp .04 .92 2.65
.71 $15.65 $40.00
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 3/4" EMT 8#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
92 #12 THHN Solid Copper .37 8.43 26.05
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
1 3/4" EMT Channel Clamp .04 .92 2.65
.76 $16.75 $43.40
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 3/4" EMT w/Pull Wire
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 Solid Pull Wire .04 .61 2.00
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
1 3/4" EMT Channel Clamp .04 .92 2.65
.43 $8.93 $19.35
D/C Comp Coup, Strap & Power Shot
Branch EMT & Wire D/C Comp Coup, Strap & Power Shot 1/2" EMT 2#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
23 #10 THHN Solid Copper .12 3.30 10.17
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
.42 $7.68 $19.11
Branch EMT & Wire D/C Comp Coup, Strap & Power Shot 1/2" EMT 2#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
23 #12 THHN Solid Copper .09 2.11 6.51
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
.39 $6.49 $15.46
Branch EMT & Wire D/C Comp Coup, Strap & Power Shot 1/2" EMT 2#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
23 #14 THHN Solid Copper .07 1.37 4.37
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
.37 $5.76 $13.32
Branch EMT & Wire D/C Comp Coup, Strap & Power Shot 1/2" EMT 3#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #10 THHN Solid Copper .18 5.02 15.47
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
.48 $9.40 $24.41

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
