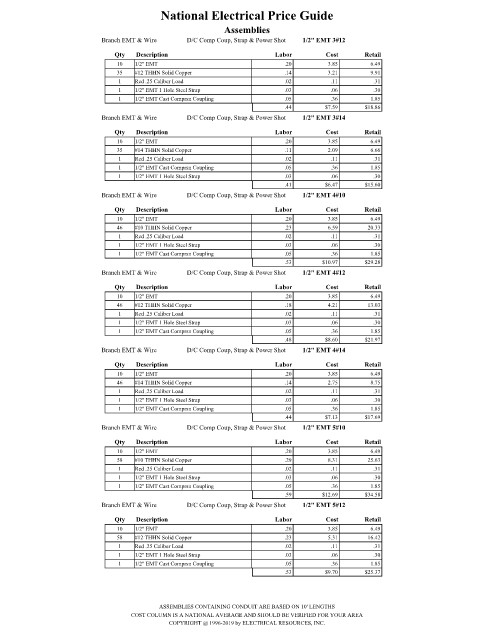

Page 1407 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire D/C Comp Coup, Strap & Power Shot 1/2" EMT 3#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #12 THHN Solid Copper .14 3.21 9.91
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
.44 $7.59 $18.86
Branch EMT & Wire D/C Comp Coup, Strap & Power Shot 1/2" EMT 3#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #14 THHN Solid Copper .11 2.09 6.66
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
.41 $6.47 $15.60
Branch EMT & Wire D/C Comp Coup, Strap & Power Shot 1/2" EMT 4#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #10 THHN Solid Copper .23 6.59 20.33
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
.53 $10.97 $29.28
Branch EMT & Wire D/C Comp Coup, Strap & Power Shot 1/2" EMT 4#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #12 THHN Solid Copper .18 4.21 13.03
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
.48 $8.60 $21.97
Branch EMT & Wire D/C Comp Coup, Strap & Power Shot 1/2" EMT 4#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #14 THHN Solid Copper .14 2.75 8.75
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
.44 $7.13 $17.69
Branch EMT & Wire D/C Comp Coup, Strap & Power Shot 1/2" EMT 5#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
58 #10 THHN Solid Copper .29 8.31 25.63
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
.59 $12.69 $34.58
Branch EMT & Wire D/C Comp Coup, Strap & Power Shot 1/2" EMT 5#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
58 #12 THHN Solid Copper .23 5.31 16.42
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
.53 $9.70 $25.37

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
