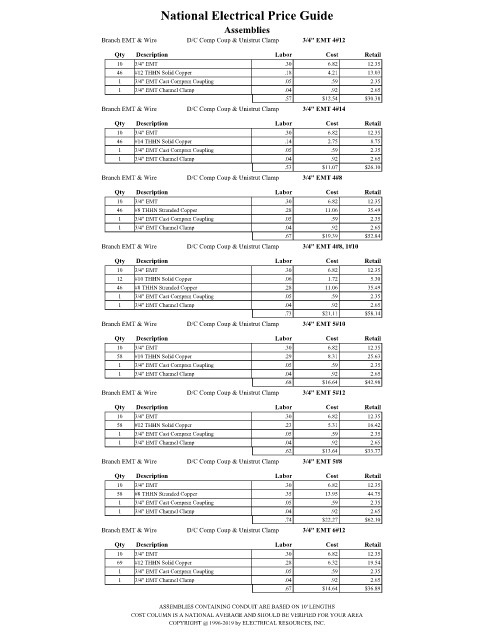

Page 1405 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 3/4" EMT 4#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #12 THHN Solid Copper .18 4.21 13.03
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
1 3/4" EMT Channel Clamp .04 .92 2.65
.57 $12.54 $30.38
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 3/4" EMT 4#14
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #14 THHN Solid Copper .14 2.75 8.75
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
1 3/4" EMT Channel Clamp .04 .92 2.65
.53 $11.07 $26.10
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 3/4" EMT 4#8
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
1 3/4" EMT Channel Clamp .04 .92 2.65
.67 $19.39 $52.84
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 3/4" EMT 4#8, 1#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 #10 THHN Solid Copper .06 1.72 5.30
46 #8 THHN Stranded Copper .28 11.06 35.49
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
1 3/4" EMT Channel Clamp .04 .92 2.65
.73 $21.11 $58.14
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 3/4" EMT 5#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #10 THHN Solid Copper .29 8.31 25.63
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
1 3/4" EMT Channel Clamp .04 .92 2.65
.68 $16.64 $42.98
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 3/4" EMT 5#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #12 THHN Solid Copper .23 5.31 16.42
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
1 3/4" EMT Channel Clamp .04 .92 2.65
.62 $13.64 $33.77
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 3/4" EMT 5#8
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #8 THHN Stranded Copper .35 13.95 44.75
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
1 3/4" EMT Channel Clamp .04 .92 2.65
.74 $22.27 $62.10
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 3/4" EMT 6#12

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
69 #12 THHN Solid Copper .28 6.32 19.54
1 3/4" EMT Cast Comprsn Coupling .05 .59 2.35
1 3/4" EMT Channel Clamp .04 .92 2.65
.67 $14.64 $36.89

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
