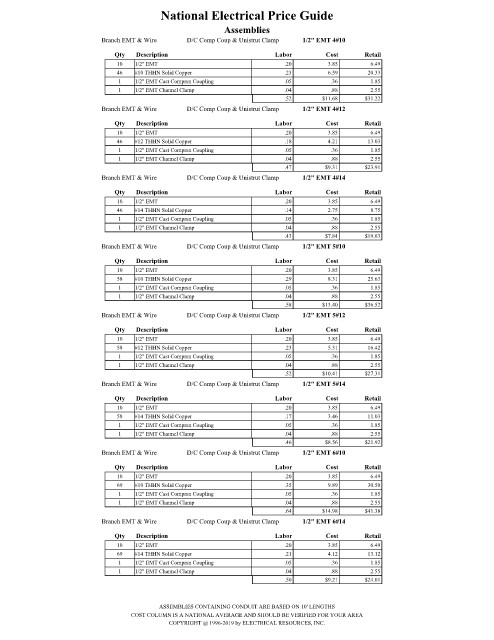

Page 1403 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 1/2" EMT 4#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #10 THHN Solid Copper .23 6.59 20.33
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT Channel Clamp .04 .88 2.55
.52 $11.68 $31.22
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 1/2" EMT 4#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #12 THHN Solid Copper .18 4.21 13.03
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT Channel Clamp .04 .88 2.55
.47 $9.31 $23.91
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 1/2" EMT 4#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #14 THHN Solid Copper .14 2.75 8.75
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT Channel Clamp .04 .88 2.55
.43 $7.84 $19.63
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 1/2" EMT 5#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
58 #10 THHN Solid Copper .29 8.31 25.63
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT Channel Clamp .04 .88 2.55
.58 $13.40 $36.52
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 1/2" EMT 5#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
58 #12 THHN Solid Copper .23 5.31 16.42
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT Channel Clamp .04 .88 2.55
.52 $10.41 $27.31
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 1/2" EMT 5#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
58 #14 THHN Solid Copper .17 3.46 11.03
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT Channel Clamp .04 .88 2.55
.46 $8.56 $21.92
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 1/2" EMT 6#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
69 #10 THHN Solid Copper .35 9.89 30.50
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT Channel Clamp .04 .88 2.55
.64 $14.98 $41.38
Branch EMT & Wire D/C Comp Coup & Unistrut Clamp 1/2" EMT 6#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
69 #14 THHN Solid Copper .21 4.12 13.12
1 1/2" EMT Cast Comprsn Coupling .05 .36 1.85
1 1/2" EMT Channel Clamp .04 .88 2.55
.50 $9.21 $24.01

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
