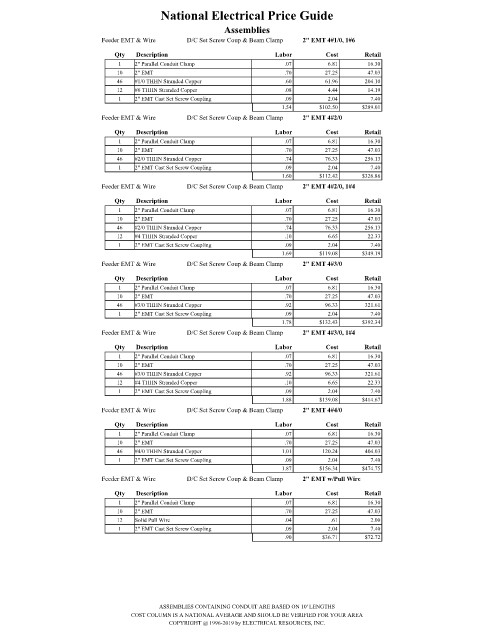

Page 1762 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 2" EMT 4#1/0, 1#6
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
46 #1/0 THHN Stranded Copper .60 61.96 204.10
12 #6 THHN Stranded Copper .08 4.44 14.19
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.54 $102.50 $289.01
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 2" EMT 4#2/0
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
46 #2/0 THHN Stranded Copper .74 76.33 256.13
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.60 $112.42 $326.86
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 2" EMT 4#2/0, 1#4
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
46 #2/0 THHN Stranded Copper .74 76.33 256.13
12 #4 THHN Stranded Copper .10 6.65 22.33
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.69 $119.08 $349.19
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 2" EMT 4#3/0
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
46 #3/0 THHN Stranded Copper .92 96.33 321.61
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.78 $132.43 $392.34
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 2" EMT 4#3/0, 1#4
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
46 #3/0 THHN Stranded Copper .92 96.33 321.61
12 #4 THHN Stranded Copper .10 6.65 22.33
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.88 $139.08 $414.67
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 2" EMT 4#4/0
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
46 #4/0 THHN Stranded Copper 1.01 120.24 404.03
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
1.87 $156.34 $474.75
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 2" EMT w/Pull Wire
Qty Description Labor Cost Retail
1 2" Parallel Conduit Clamp .07 6.81 16.30
10 2" EMT .70 27.25 47.03
12 Solid Pull Wire .04 .61 2.00
1 2" EMT Cast Set Screw Coupling .09 2.04 7.40
.90 $36.71 $72.72

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
