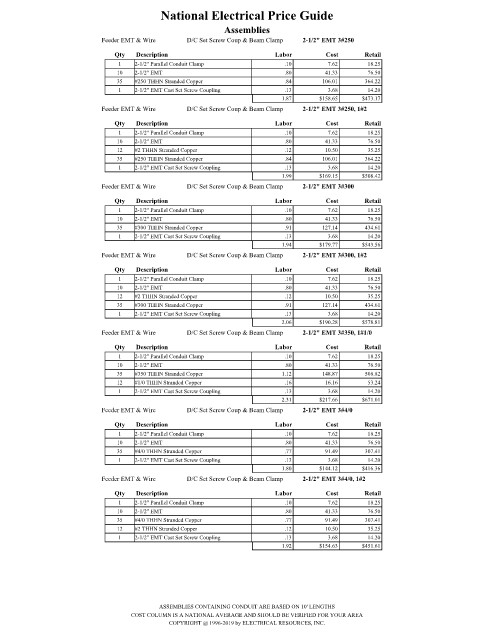

Page 1763 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 2-1/2" EMT 3#250
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
35 #250 THHN Stranded Copper .84 106.01 364.22
1 2-1/2" EMT Cast Set Screw Coupling .13 3.68 14.20
1.87 $158.65 $473.17
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 2-1/2" EMT 3#250, 1#2
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
12 #2 THHN Stranded Copper .12 10.50 35.25
35 #250 THHN Stranded Copper .84 106.01 364.22
1 2-1/2" EMT Cast Set Screw Coupling .13 3.68 14.20
1.99 $169.15 $508.42
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 2-1/2" EMT 3#300
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
35 #300 THHN Stranded Copper .91 127.14 434.61
1 2-1/2" EMT Cast Set Screw Coupling .13 3.68 14.20
1.94 $179.77 $543.56
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 2-1/2" EMT 3#300, 1#2
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
12 #2 THHN Stranded Copper .12 10.50 35.25
35 #300 THHN Stranded Copper .91 127.14 434.61
1 2-1/2" EMT Cast Set Screw Coupling .13 3.68 14.20
2.06 $190.28 $578.81
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 2-1/2" EMT 3#350, 1#1/0
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
35 #350 THHN Stranded Copper 1.12 148.87 508.82
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 2-1/2" EMT Cast Set Screw Coupling .13 3.68 14.20
2.31 $217.66 $671.01
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 2-1/2" EMT 3#4/0
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
35 #4/0 THHN Stranded Copper .77 91.49 307.41
1 2-1/2" EMT Cast Set Screw Coupling .13 3.68 14.20
1.80 $144.12 $416.36
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 2-1/2" EMT 3#4/0, 1#2
Qty Description Labor Cost Retail
1 2-1/2" Parallel Conduit Clamp .10 7.62 18.25
10 2-1/2" EMT .80 41.33 76.50
35 #4/0 THHN Stranded Copper .77 91.49 307.41
12 #2 THHN Stranded Copper .12 10.50 35.25
1 2-1/2" EMT Cast Set Screw Coupling .13 3.68 14.20
1.92 $154.63 $451.61

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
