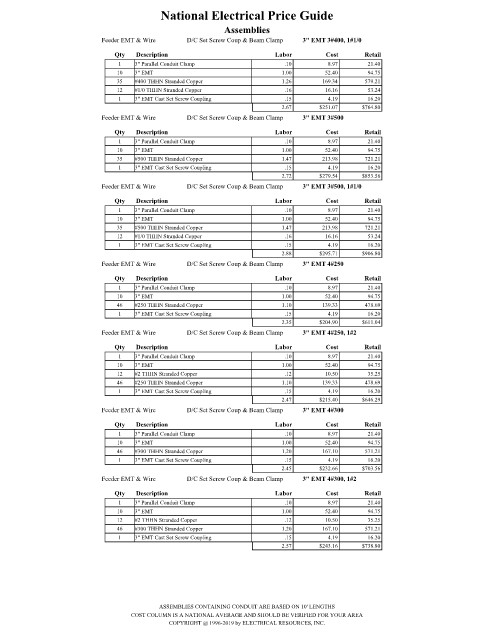

Page 1766 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3" EMT 3#400, 1#1/0
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
35 #400 THHN Stranded Copper 1.26 169.34 579.21
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.67 $251.07 $764.80
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3" EMT 3#500
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.72 $279.54 $853.56
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3" EMT 3#500, 1#1/0
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
35 #500 THHN Stranded Copper 1.47 213.98 721.21
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.88 $295.71 $906.80
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3" EMT 4#250
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
46 #250 THHN Stranded Copper 1.10 139.33 478.69
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.35 $204.90 $611.04
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3" EMT 4#250, 1#2
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
12 #2 THHN Stranded Copper .12 10.50 35.25
46 #250 THHN Stranded Copper 1.10 139.33 478.69
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.47 $215.40 $646.29
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3" EMT 4#300
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
46 #300 THHN Stranded Copper 1.20 167.10 571.21
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.45 $232.66 $703.56
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3" EMT 4#300, 1#2
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
12 #2 THHN Stranded Copper .12 10.50 35.25
46 #300 THHN Stranded Copper 1.20 167.10 571.21
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.57 $243.16 $738.80

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
