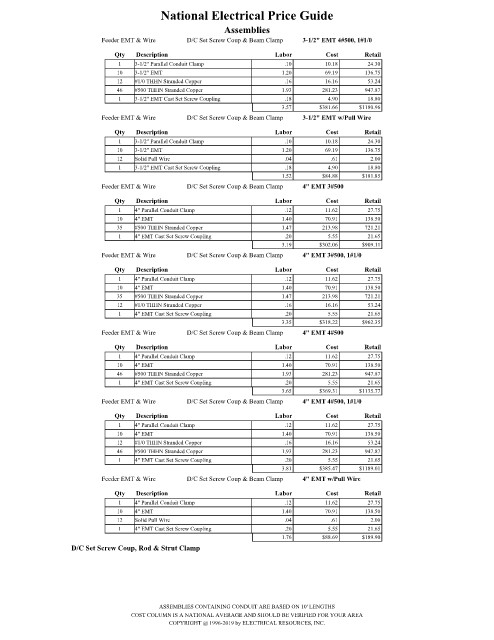

Page 1769 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3-1/2" EMT 4#500, 1#1/0
Qty Description Labor Cost Retail
1 3-1/2" Parallel Conduit Clamp .10 10.18 24.30
10 3-1/2" EMT 1.20 69.19 136.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 3-1/2" EMT Cast Set Screw Coupling .18 4.90 18.80
3.57 $381.66 $1180.96
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3-1/2" EMT w/Pull Wire
Qty Description Labor Cost Retail
1 3-1/2" Parallel Conduit Clamp .10 10.18 24.30
10 3-1/2" EMT 1.20 69.19 136.75
12 Solid Pull Wire .04 .61 2.00
1 3-1/2" EMT Cast Set Screw Coupling .18 4.90 18.80
1.52 $84.88 $181.85
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 4" EMT 3#500
Qty Description Labor Cost Retail
1 4" Parallel Conduit Clamp .12 11.62 27.75
10 4" EMT 1.40 70.91 138.50
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 4" EMT Cast Set Screw Coupling .20 5.55 21.65
3.19 $302.06 $909.11
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 4" EMT 3#500, 1#1/0
Qty Description Labor Cost Retail
1 4" Parallel Conduit Clamp .12 11.62 27.75
10 4" EMT 1.40 70.91 138.50
35 #500 THHN Stranded Copper 1.47 213.98 721.21
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 4" EMT Cast Set Screw Coupling .20 5.55 21.65
3.35 $318.22 $962.35
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 4" EMT 4#500
Qty Description Labor Cost Retail
1 4" Parallel Conduit Clamp .12 11.62 27.75
10 4" EMT 1.40 70.91 138.50
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 4" EMT Cast Set Screw Coupling .20 5.55 21.65
3.65 $369.31 $1135.77
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 4" EMT 4#500, 1#1/0
Qty Description Labor Cost Retail
1 4" Parallel Conduit Clamp .12 11.62 27.75
10 4" EMT 1.40 70.91 138.50
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 4" EMT Cast Set Screw Coupling .20 5.55 21.65
3.81 $385.47 $1189.01
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 4" EMT w/Pull Wire
Qty Description Labor Cost Retail
1 4" Parallel Conduit Clamp .12 11.62 27.75
10 4" EMT 1.40 70.91 138.50
12 Solid Pull Wire .04 .61 2.00
1 4" EMT Cast Set Screw Coupling .20 5.55 21.65
1.76 $88.69 $189.90
D/C Set Screw Coup, Rod & Strut Clamp

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
