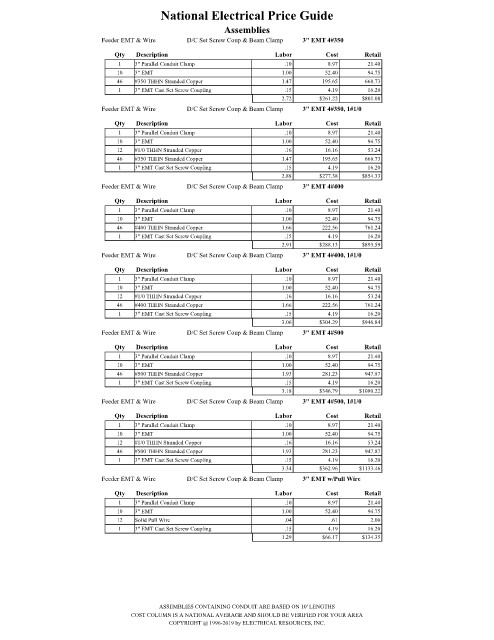

Page 1767 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3" EMT 4#350
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
46 #350 THHN Stranded Copper 1.47 195.65 668.73
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.72 $261.22 $801.08
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3" EMT 4#350, 1#1/0
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #350 THHN Stranded Copper 1.47 195.65 668.73
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.88 $277.38 $854.33
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3" EMT 4#400
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
46 #400 THHN Stranded Copper 1.66 222.56 761.24
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
2.91 $288.13 $893.59
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3" EMT 4#400, 1#1/0
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #400 THHN Stranded Copper 1.66 222.56 761.24
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
3.06 $304.29 $946.84
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3" EMT 4#500
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
3.18 $346.79 $1080.22
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3" EMT 4#500, 1#1/0
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
12 #1/0 THHN Stranded Copper .16 16.16 53.24
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
3.34 $362.96 $1133.46
Feeder EMT & Wire D/C Set Screw Coup & Beam Clamp 3" EMT w/Pull Wire
Qty Description Labor Cost Retail
1 3" Parallel Conduit Clamp .10 8.97 21.40
10 3" EMT 1.00 52.40 94.75
12 Solid Pull Wire .04 .61 2.00
1 3" EMT Cast Set Screw Coupling .15 4.19 16.20
1.29 $66.17 $134.35

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
