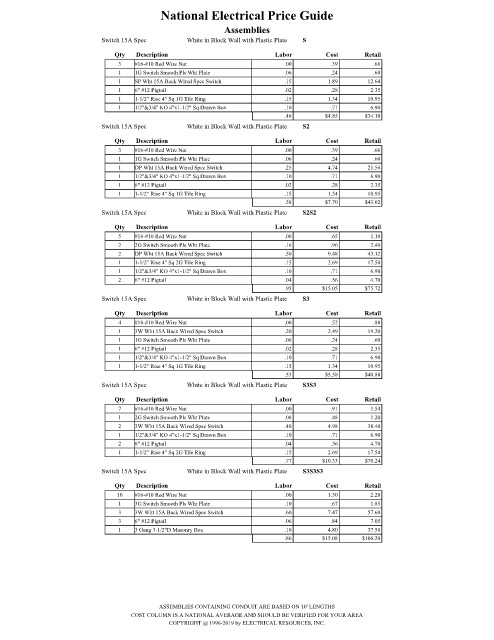

Page 2688 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 15A Spec White in Block Wall with Plastic Plate S
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 SP Wht 15A Back Wired Spec Switch .15 1.89 12.64
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.48 $4.85 $34.10
Switch 15A Spec White in Block Wall with Plastic Plate S2
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 DP Wht 15A Back Wired Spec Switch .25 4.74 21.56
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
.58 $7.70 $43.02
Switch 15A Spec White in Block Wall with Plastic Plate S2S2
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 2G Switch Smooth Pls Wht Plate .16 .96 2.40
2 DP Wht 15A Back Wired Spec Switch .50 9.48 43.12
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
.95 $15.05 $75.72
Switch 15A Spec White in Block Wall with Plastic Plate S3
Qty Description Labor Cost Retail
4 #16-#10 Red Wire Nut .00 .52 .88
1 3W Wht 15A Back Wired Spec Switch .20 2.49 19.20
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
.53 $5.58 $40.88
Switch 15A Spec White in Block Wall with Plastic Plate S3S3
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 2G Switch Smooth Pls Wht Plate .08 .48 1.20
2 3W Wht 15A Back Wired Spec Switch .40 4.98 38.40
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.77 $10.33 $70.24
Switch 15A Spec White in Block Wall with Plastic Plate S3S3S3
Qty Description Labor Cost Retail
10 #16-#10 Red Wire Nut .00 1.30 2.20
1 3G Switch Smooth Pls Wht Plate .10 .67 1.85
3 3W Wht 15A Back Wired Spec Switch .60 7.47 57.60
3 6" #12 Pigtail .06 .84 7.05
1 3 Gang 3-1/2"D Masonry Box .10 4.80 37.50
.86 $15.08 $106.20

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
