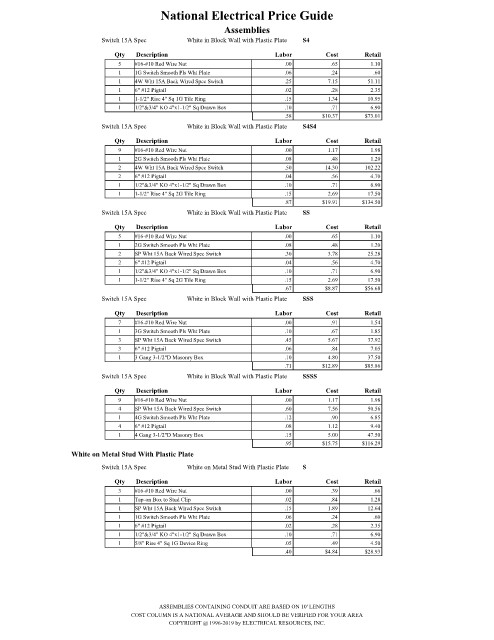

National Electrical Price Guide

Assemblies
Switch 15A Spec White in Block Wall with Plastic Plate S4
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 4W Wht 15A Back Wired Spec Switch .25 7.15 51.11
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.58 $10.37 $73.01
Switch 15A Spec White in Block Wall with Plastic Plate S4S4
Qty Description Labor Cost Retail
9 #16-#10 Red Wire Nut .00 1.17 1.98
1 2G Switch Smooth Pls Wht Plate .08 .48 1.20
2 4W Wht 15A Back Wired Spec Switch .50 14.30 102.22
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.87 $19.91 $134.50
Switch 15A Spec White in Block Wall with Plastic Plate SS
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 2G Switch Smooth Pls Wht Plate .08 .48 1.20
2 SP Wht 15A Back Wired Spec Switch .30 3.78 25.28
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.67 $8.87 $56.68
Switch 15A Spec White in Block Wall with Plastic Plate SSS
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 3G Switch Smooth Pls Wht Plate .10 .67 1.85
3 SP Wht 15A Back Wired Spec Switch .45 5.67 37.92
3 6" #12 Pigtail .06 .84 7.05
1 3 Gang 3-1/2"D Masonry Box .10 4.80 37.50
.71 $12.89 $85.86
Switch 15A Spec White in Block Wall with Plastic Plate SSSS
Qty Description Labor Cost Retail
9 #16-#10 Red Wire Nut .00 1.17 1.98
4 SP Wht 15A Back Wired Spec Switch .60 7.56 50.56
1 4G Switch Smooth Pls Wht Plate .12 .90 6.85
4 6" #12 Pigtail .08 1.12 9.40
1 4 Gang 3-1/2"D Masonry Box .15 5.00 47.50
.95 $15.75 $116.29
White on Metal Stud With Plastic Plate
Switch 15A Spec White on Metal Stud With Plastic Plate S
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 SP Wht 15A Back Wired Spec Switch .15 1.89 12.64
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.40 $4.84 $28.93

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
