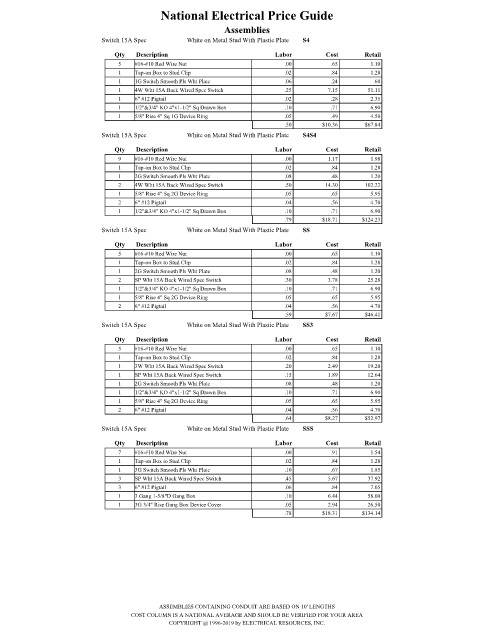

National Electrical Price Guide

Assemblies
Switch 15A Spec White on Metal Stud With Plastic Plate S4
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 4W Wht 15A Back Wired Spec Switch .25 7.15 51.11
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.50 $10.36 $67.84
Switch 15A Spec White on Metal Stud With Plastic Plate S4S4

Qty Description Labor Cost Retail
9 #16-#10 Red Wire Nut .00 1.17 1.98
1 Tap-on Box to Stud Clip .02 .84 1.28
1 2G Switch Smooth Pls Wht Plate .08 .48 1.20
2 4W Wht 15A Back Wired Spec Switch .50 14.30 102.22
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.79 $18.71 $124.23
Switch 15A Spec White on Metal Stud With Plastic Plate SS
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
1 2G Switch Smooth Pls Wht Plate .08 .48 1.20
2 SP Wht 15A Back Wired Spec Switch .30 3.78 25.28
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
2 6" #12 Pigtail .04 .56 4.70
.59 $7.67 $46.41
Switch 15A Spec White on Metal Stud With Plastic Plate SS3
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
1 3W Wht 15A Back Wired Spec Switch .20 2.49 19.20
1 SP Wht 15A Back Wired Spec Switch .15 1.89 12.64
1 2G Switch Smooth Pls Wht Plate .08 .48 1.20
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
2 6" #12 Pigtail .04 .56 4.70
.64 $8.27 $52.97
Switch 15A Spec White on Metal Stud With Plastic Plate SSS
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 Tap-on Box to Stud Clip .02 .84 1.28
1 3G Switch Smooth Pls Wht Plate .10 .67 1.85
3 SP Wht 15A Back Wired Spec Switch .45 5.67 37.92
3 6" #12 Pigtail .06 .84 7.05
1 3 Gang 1-5/8"D Gang Box .10 6.44 58.00
1 3G 3/4" Rise Gang Box Device Cover .05 2.94 26.50
.78 $18.31 $134.14

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
