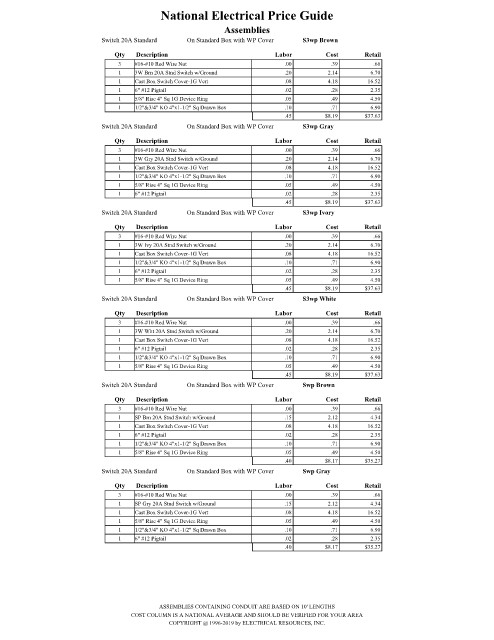

Page 2803 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 20A Standard On Standard Box with WP Cover S3wp Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 3W Brn 20A Stnd Switch w/Ground .20 2.14 6.70
1 Cast Box Switch Cover-1G Vert .08 4.18 16.52
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.45 $8.19 $37.63
Switch 20A Standard On Standard Box with WP Cover S3wp Gray
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 3W Gry 20A Stnd Switch w/Ground .20 2.14 6.70
1 Cast Box Switch Cover-1G Vert .08 4.18 16.52
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
.45 $8.19 $37.63
Switch 20A Standard On Standard Box with WP Cover S3wp Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 3W Ivy 20A Stnd Switch w/Ground .20 2.14 6.70
1 Cast Box Switch Cover-1G Vert .08 4.18 16.52
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.45 $8.19 $37.63
Switch 20A Standard On Standard Box with WP Cover S3wp White
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 3W Wht 20A Stnd Switch w/Ground .20 2.14 6.70
1 Cast Box Switch Cover-1G Vert .08 4.18 16.52
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.45 $8.19 $37.63
Switch 20A Standard On Standard Box with WP Cover Swp Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 SP Brn 20A Stnd Switch w/Ground .15 2.12 4.34
1 Cast Box Switch Cover-1G Vert .08 4.18 16.52
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.40 $8.17 $35.27
Switch 20A Standard On Standard Box with WP Cover Swp Gray
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 SP Gry 20A Stnd Switch w/Ground .15 2.12 4.34
1 Cast Box Switch Cover-1G Vert .08 4.18 16.52
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.40 $8.17 $35.27

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
