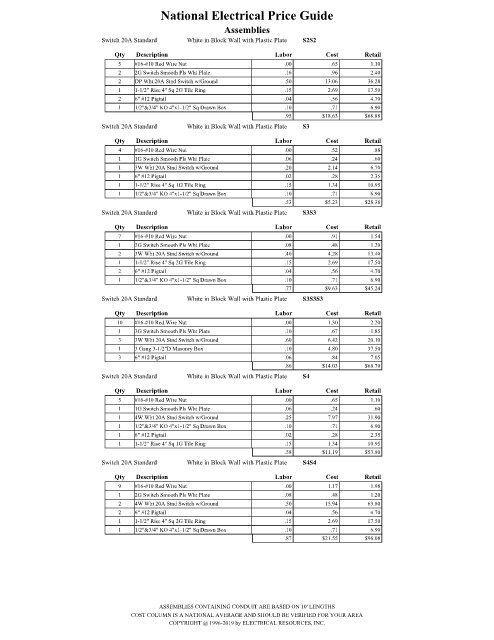

National Electrical Price Guide

Assemblies
Switch 20A Standard White in Block Wall with Plastic Plate S2S2
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 2G Switch Smooth Pls Wht Plate .16 .96 2.40
2 DP Wht 20A Stnd Switch w/Ground .50 13.06 36.28
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.95 $18.63 $68.88
Switch 20A Standard White in Block Wall with Plastic Plate S3
Qty Description Labor Cost Retail
4 #16-#10 Red Wire Nut .00 .52 .88
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 3W Wht 20A Stnd Switch w/Ground .20 2.14 6.70
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.53 $5.23 $28.38
Switch 20A Standard White in Block Wall with Plastic Plate S3S3
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 2G Switch Smooth Pls Wht Plate .08 .48 1.20
2 3W Wht 20A Stnd Switch w/Ground .40 4.28 13.40
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.77 $9.63 $45.24
Switch 20A Standard White in Block Wall with Plastic Plate S3S3S3
Qty Description Labor Cost Retail
10 #16-#10 Red Wire Nut .00 1.30 2.20
1 3G Switch Smooth Pls Wht Plate .10 .67 1.85
3 3W Wht 20A Stnd Switch w/Ground .60 6.42 20.10
1 3 Gang 3-1/2"D Masonry Box .10 4.80 37.50
3 6" #12 Pigtail .06 .84 7.05
.86 $14.03 $68.70
Switch 20A Standard White in Block Wall with Plastic Plate S4
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 4W Wht 20A Stnd Switch w/Ground .25 7.97 31.90
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
.58 $11.19 $53.80
Switch 20A Standard White in Block Wall with Plastic Plate S4S4
Qty Description Labor Cost Retail
9 #16-#10 Red Wire Nut .00 1.17 1.98
1 2G Switch Smooth Pls Wht Plate .08 .48 1.20
2 4W Wht 20A Stnd Switch w/Ground .50 15.94 63.80
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.87 $21.55 $96.08

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
